PR-510

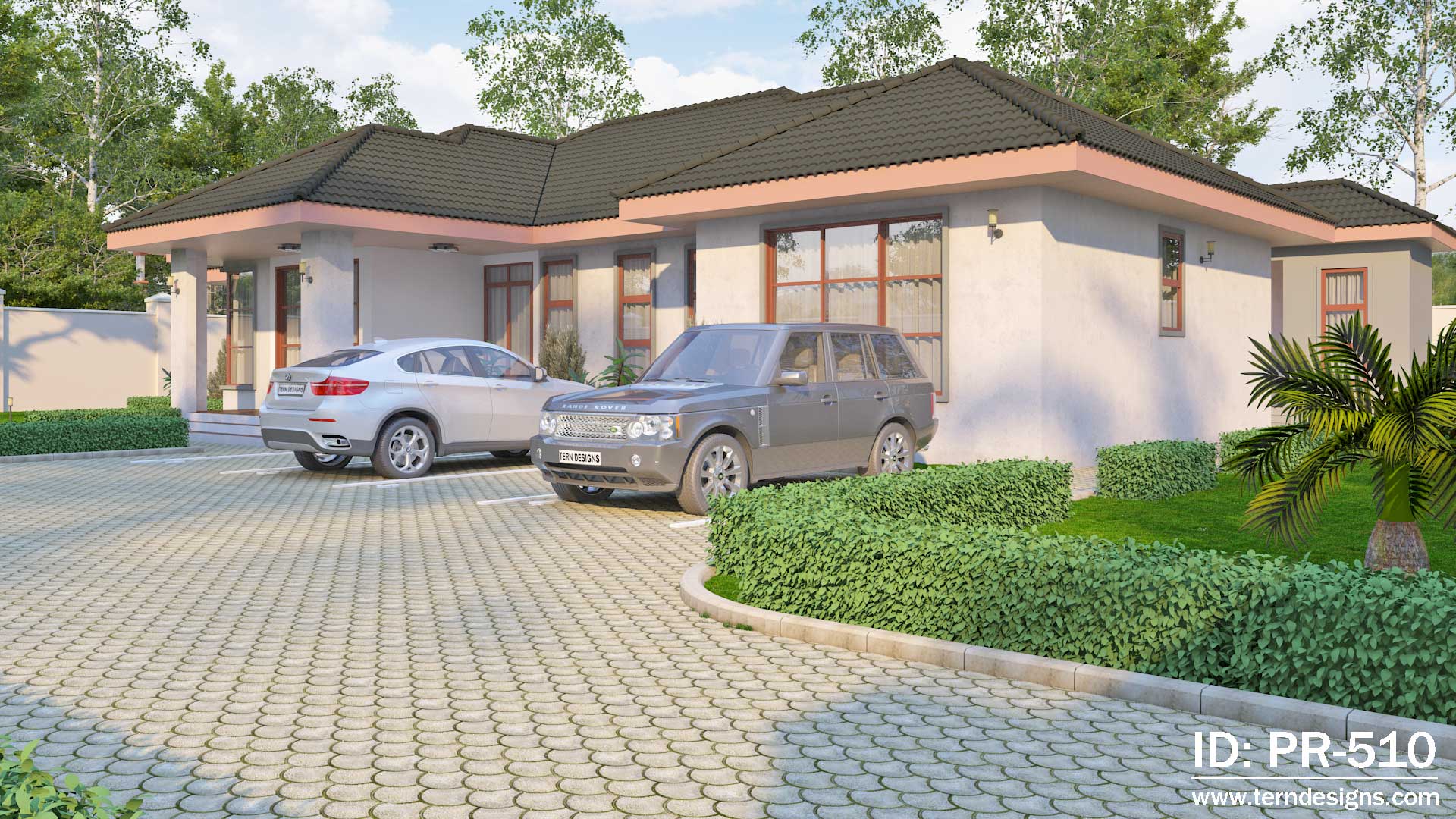

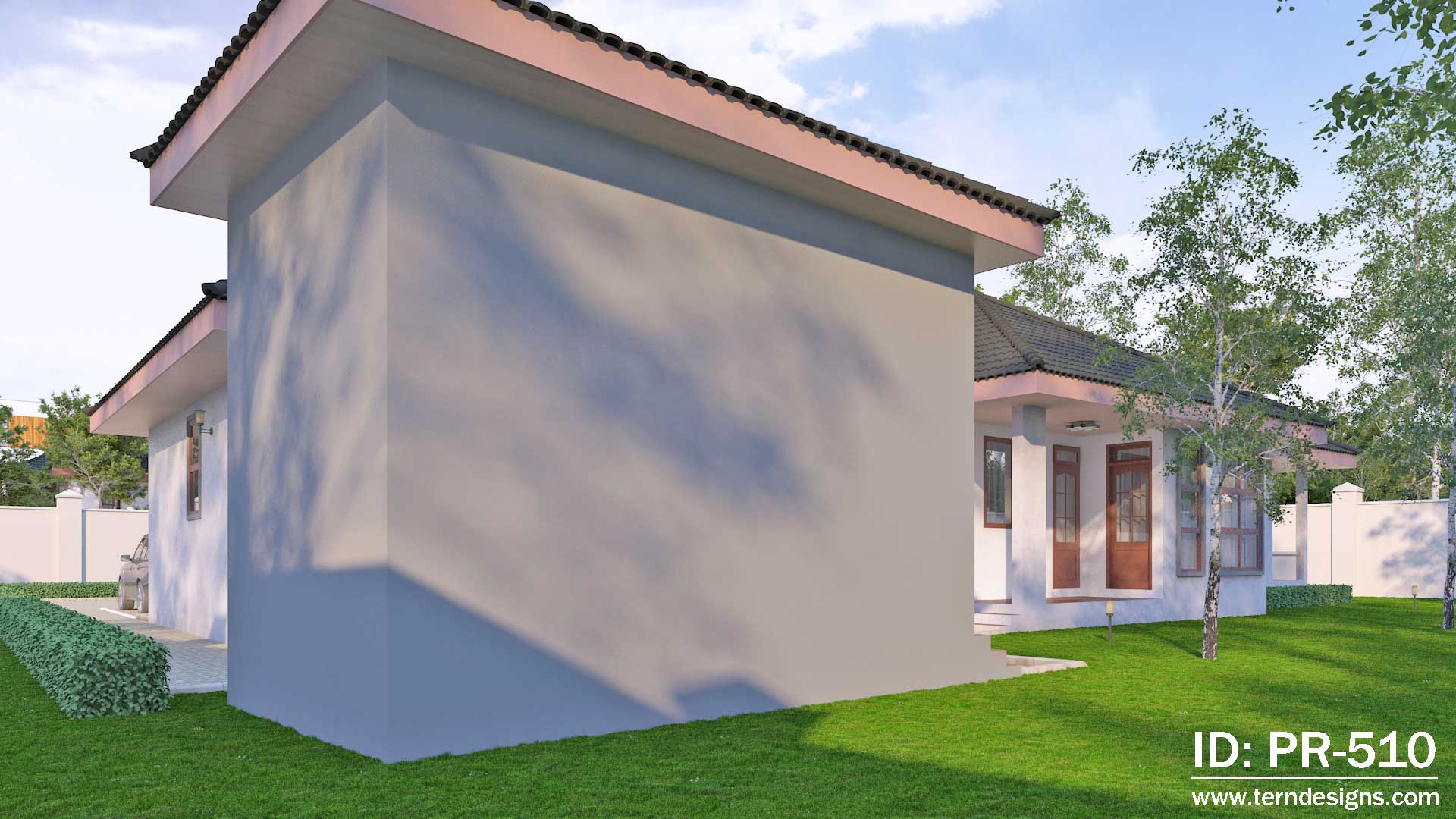

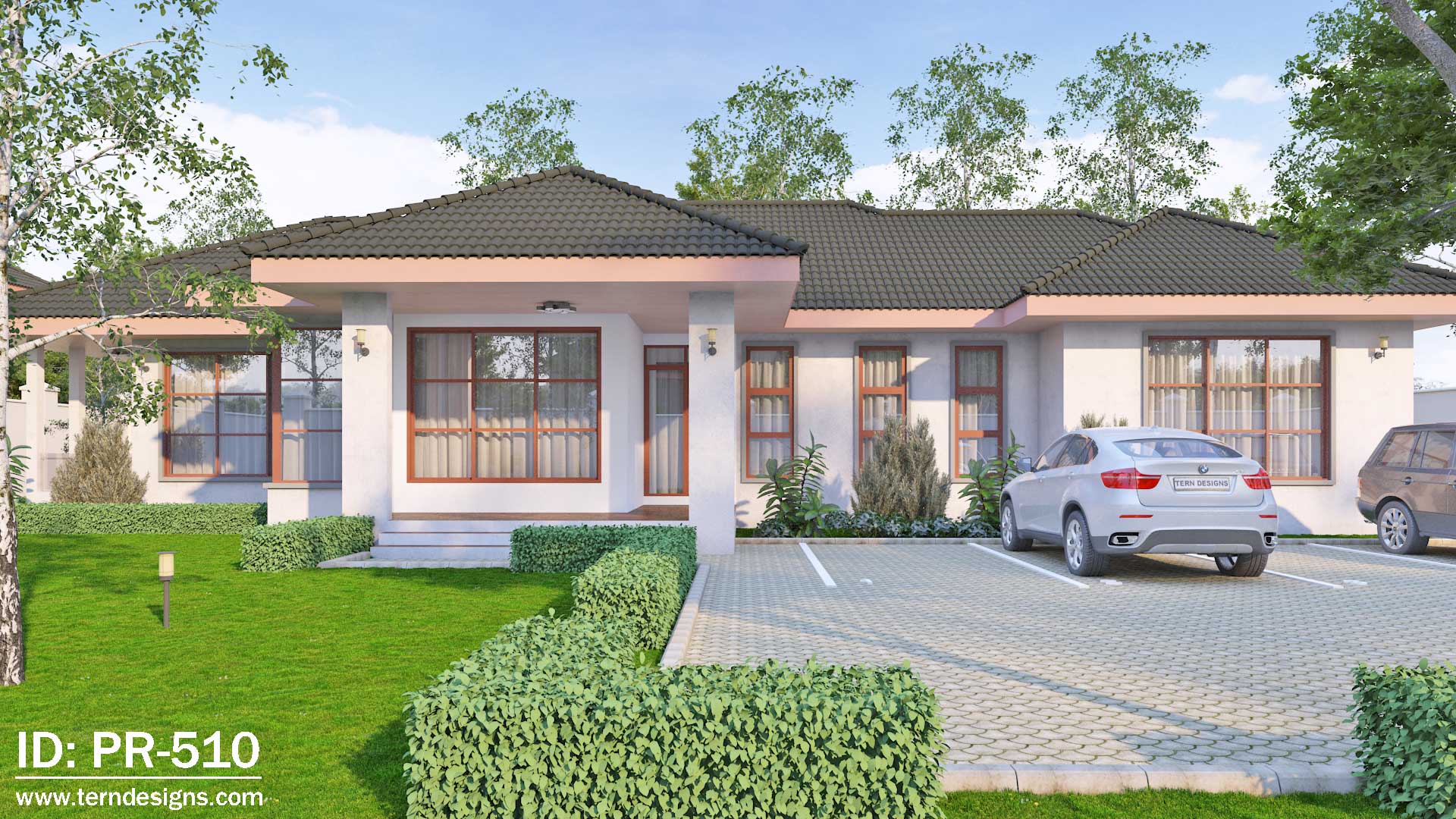

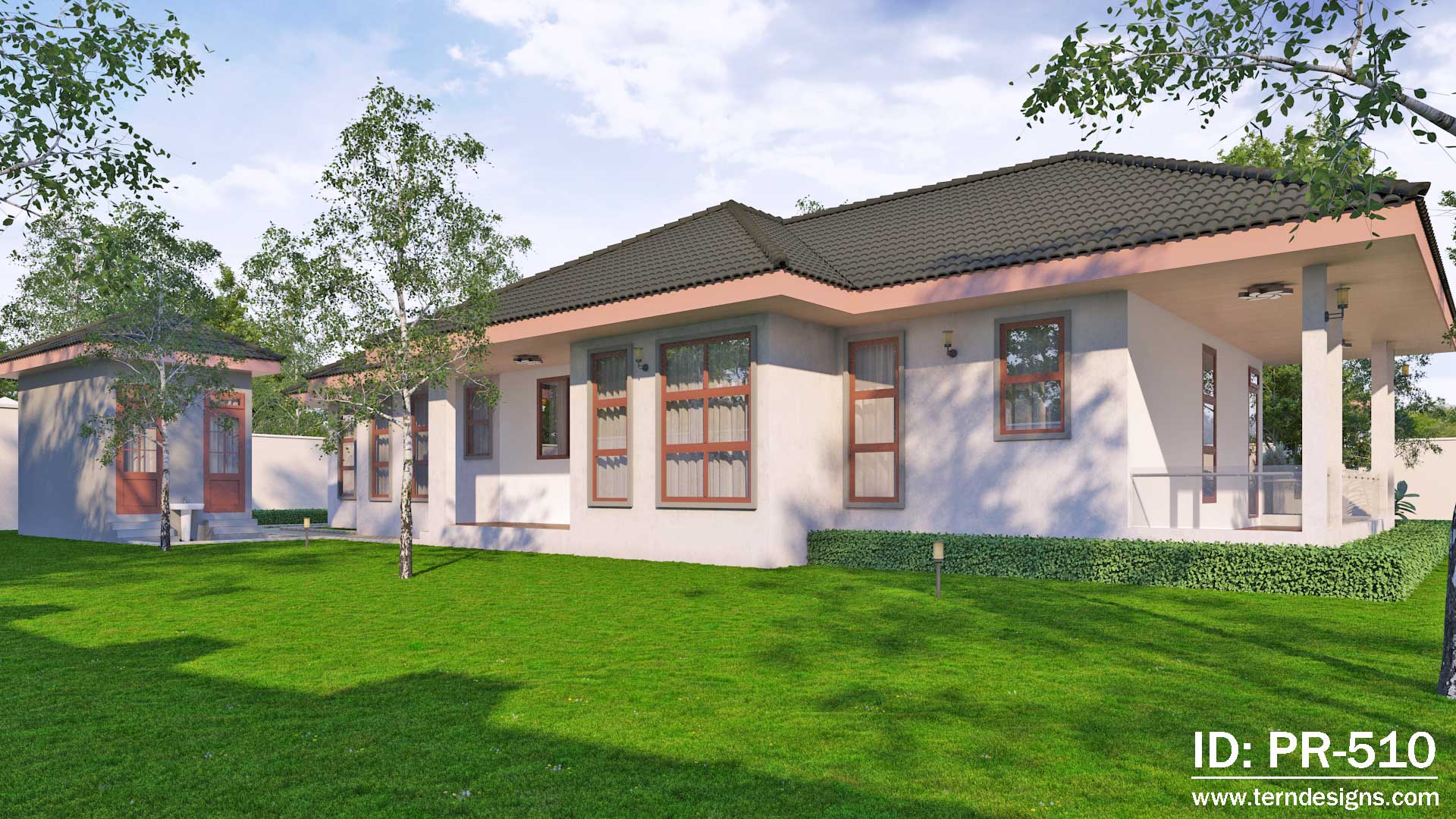

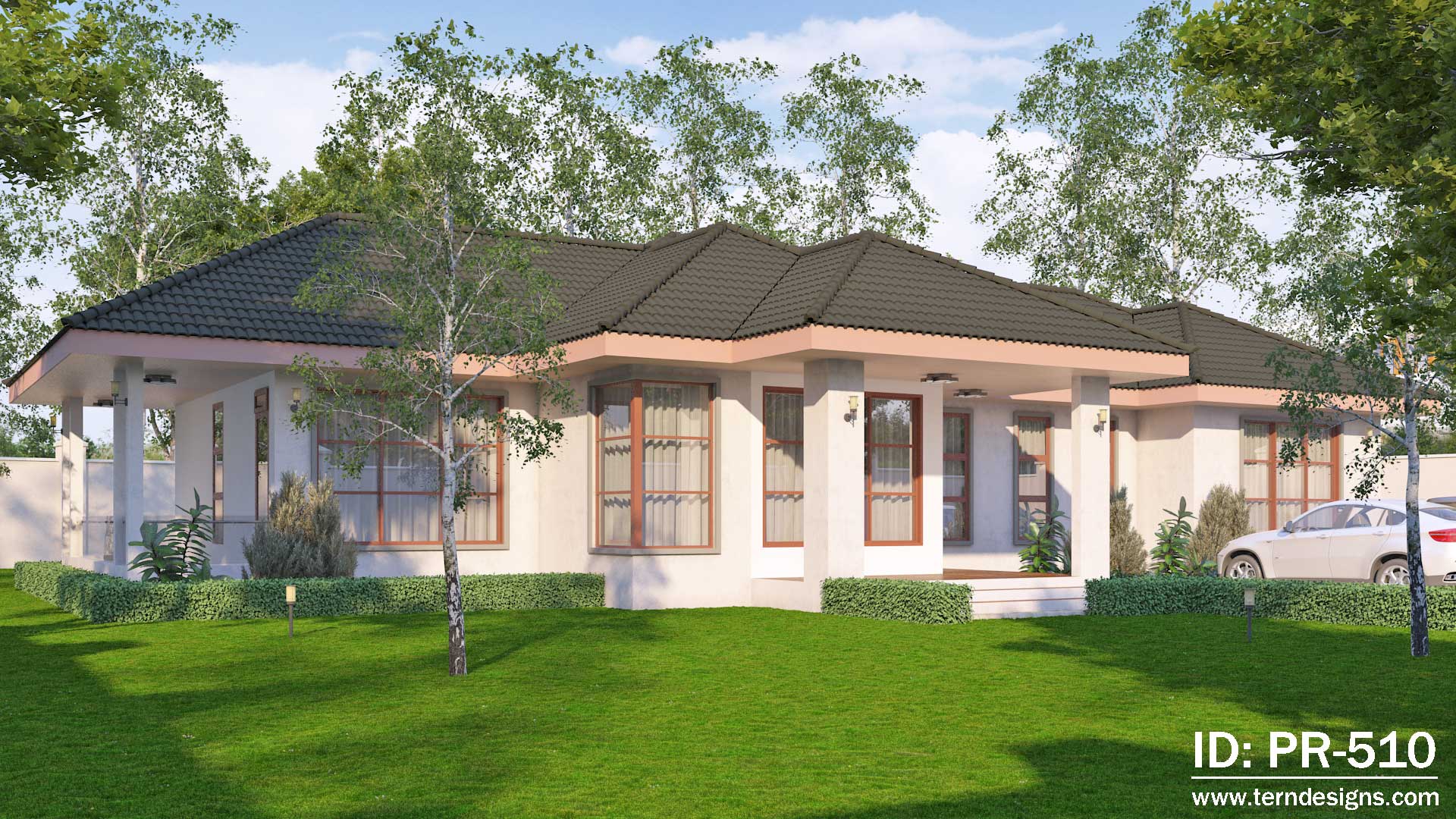

A 5-bedroom bungalow open design to give you 360 captivating views. The eave-celling flashing design brings out modern look.

$575

Clear

PLAN DETAILS

Main House

  • 1 Storey
  • 5 Bedrooms
  • 3 Bedroom self-contained
  • Width: 24.35m
  • Depth: 15m
  • Building footprint area: 254.43m2
  • 1 Living room
  • 1 Dining room
  • 1 Kitchen
  • Open floor plan (Living, Dinning, Kitchen)
  • 3 Baths/toilets
  • 1 General toilet
  • 3 Porches
  • Store
  • Linen area
  • Nook
  • Master bedroom ensuite with Walk in Closet



Boy’s Quarter

  • 1 Storey
  • 1 Bedroom
  • Kitchen
  • Width: 5.3m
  • Depth: 2.9m
  • Building footprint area: 15.37m2
  • WC
  • Bath
  • 1 Porch



ARCHITECTURAL DRAWINGS (INCLUDED)

  • Floor plans and details
  • Roof plan and details
  • Elevations
  • Sections
  • Door and window schedules
  • Septic tank and soak pit details
  • 3D Documents
  • Other relevant details
