PR-423

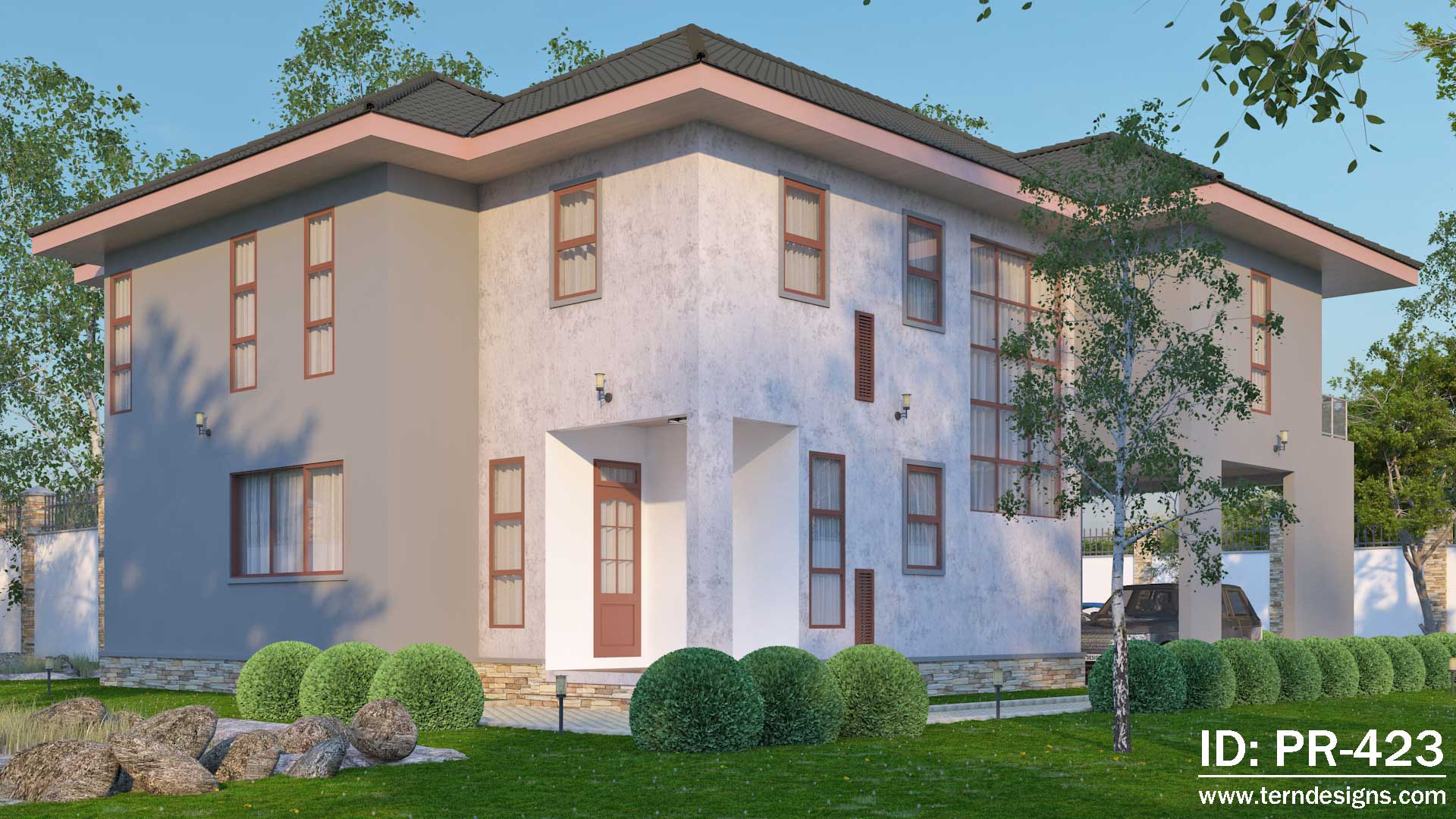

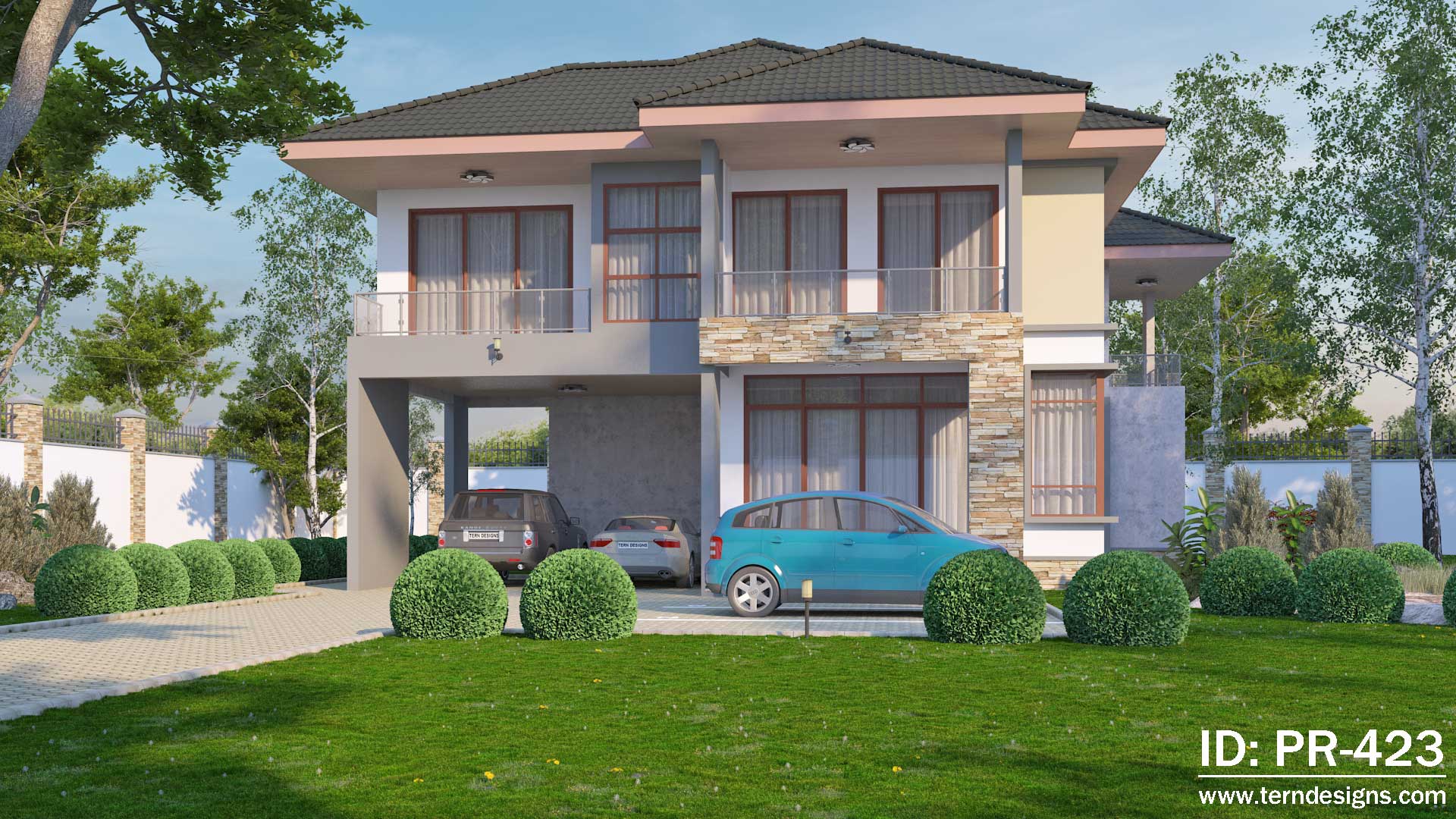

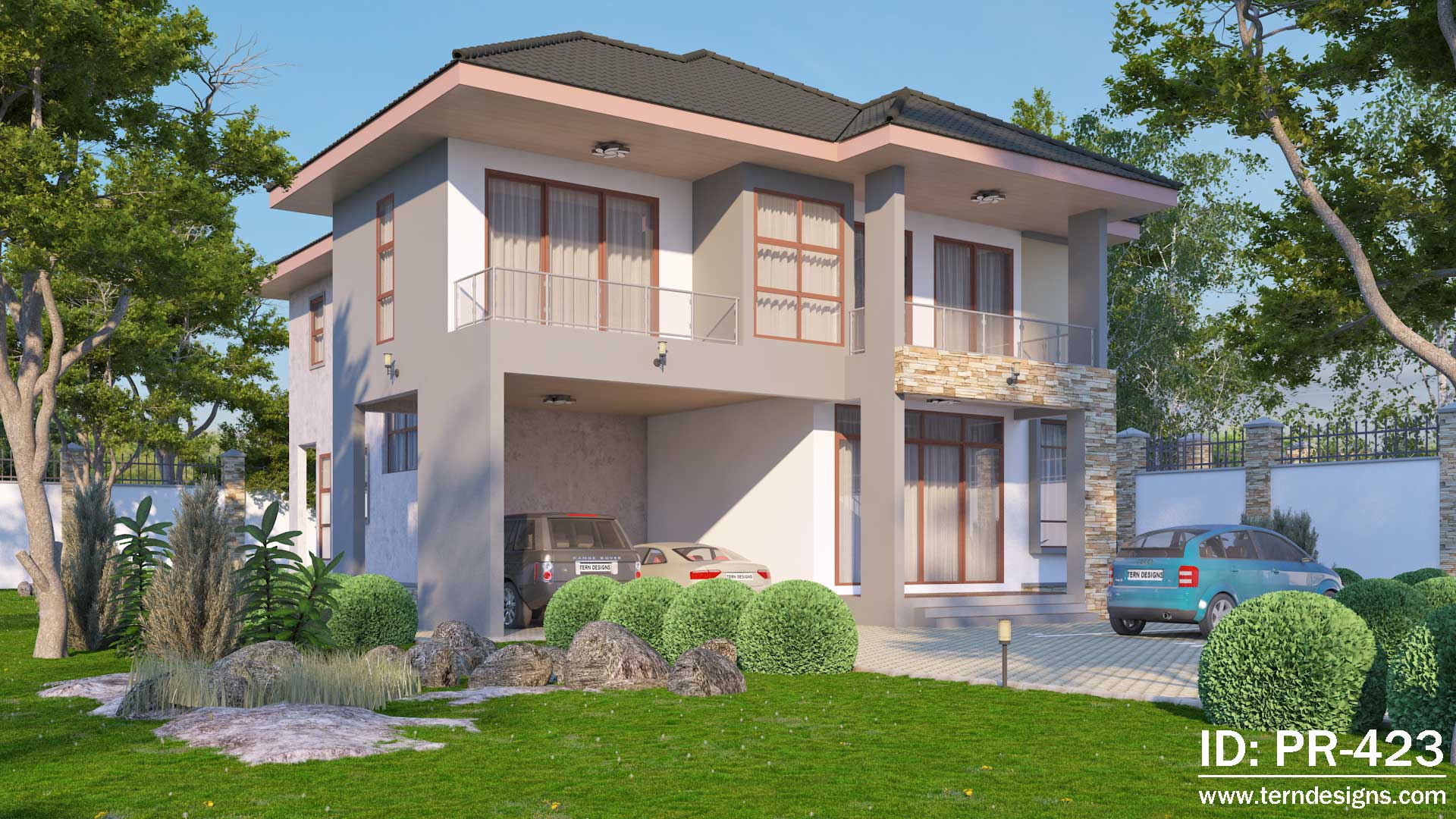

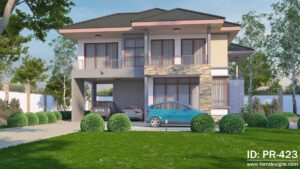

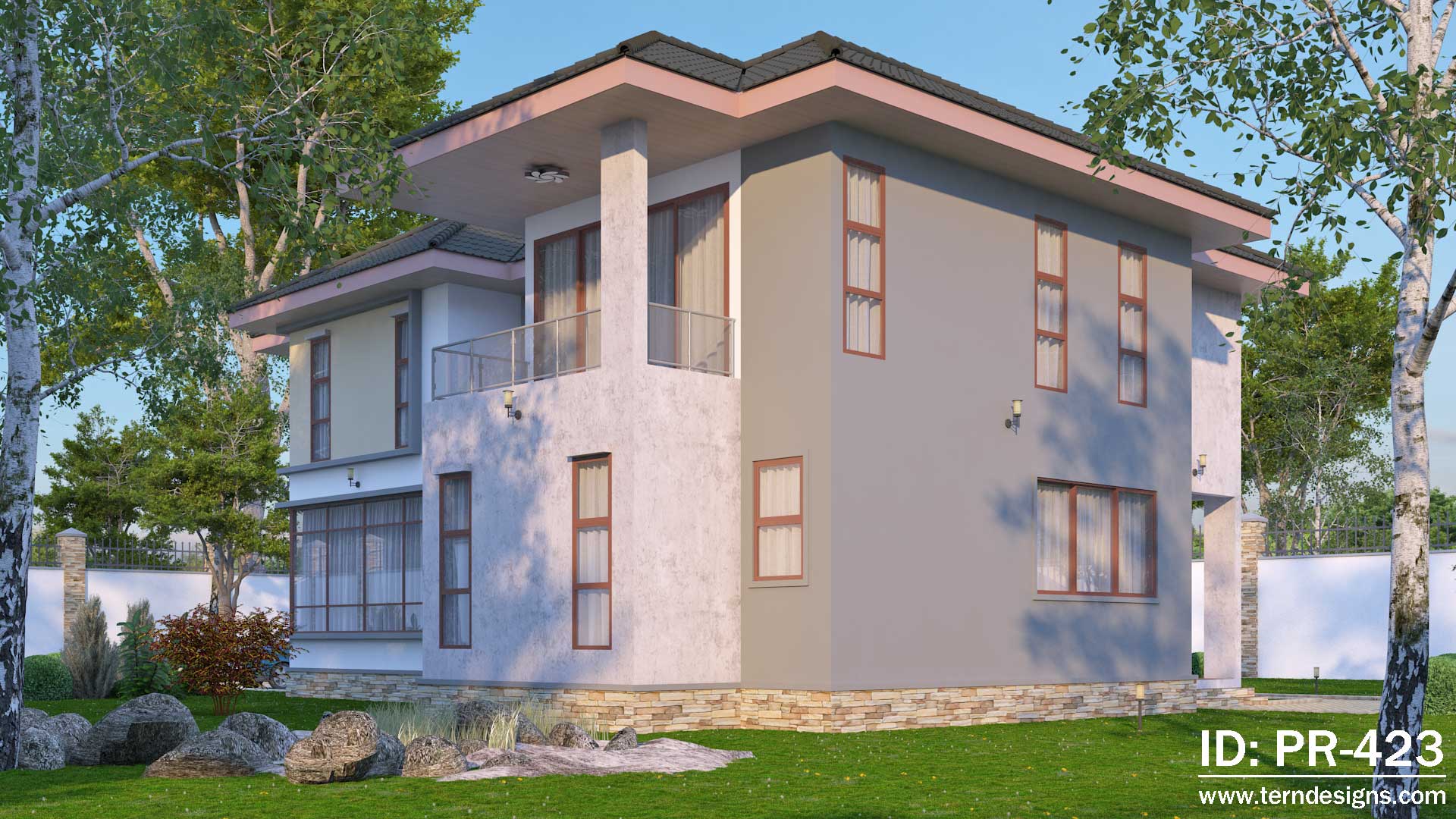

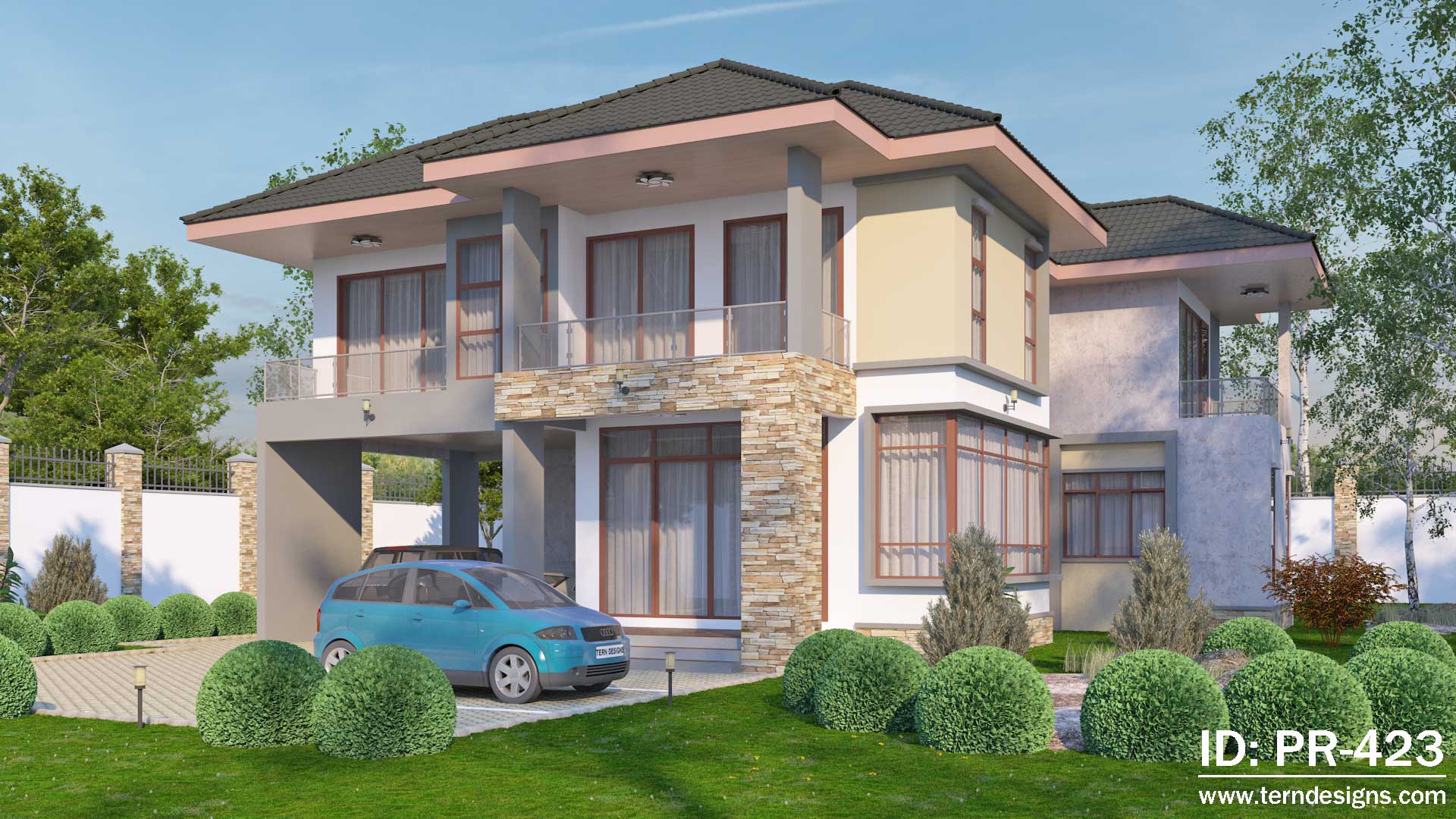

A spacious 4-bedroom house design which combines both contemporary and classic styles.
$400 – $850
PLAN DETAILS
- 2 Storeys
- 4 Bedrooms (2 self-contained)
- Width: 15.8m
- Depth: 17.7m
- Building footprint area: 194.5m2
- 1 Living room
- 1 Dining room
- 1 Kitchen
- Study room
- 3 Baths/toilets
- Powder room
- 1 Pantry
- 1 Walk in closet
- 3 Balconies
- 2 Porches
- Carport (2-Cars)
ARCHITECTURAL DRAWINGS (INCLUDED)
- Floor plans and details
- Roof plan and details
- Elevations
- Sections
- Door and window schedules
- Septic tank and soak pit details
- 3D Documents
- Other relevant structural drawings
STRUCTURAL DRAWINGS (INCLUDED)
- Foundation layout and details
- Floor layout plans
- Floor slab reinforcement plans
- Roof layout and details
- Beam and Column details
- Slab details
- Staircase plan, section and details
- Other relevant structural drawings
