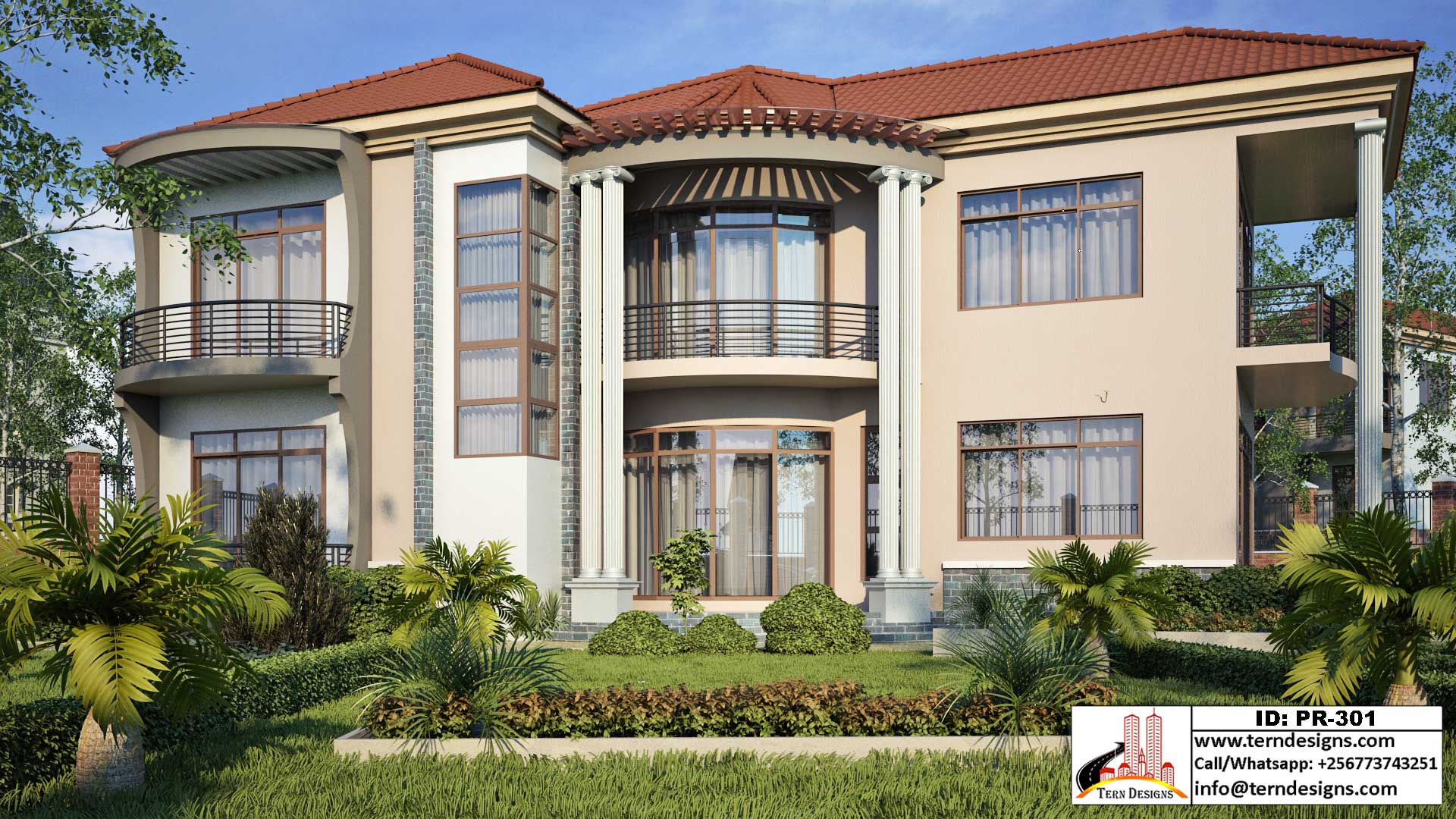

PR-301-View01

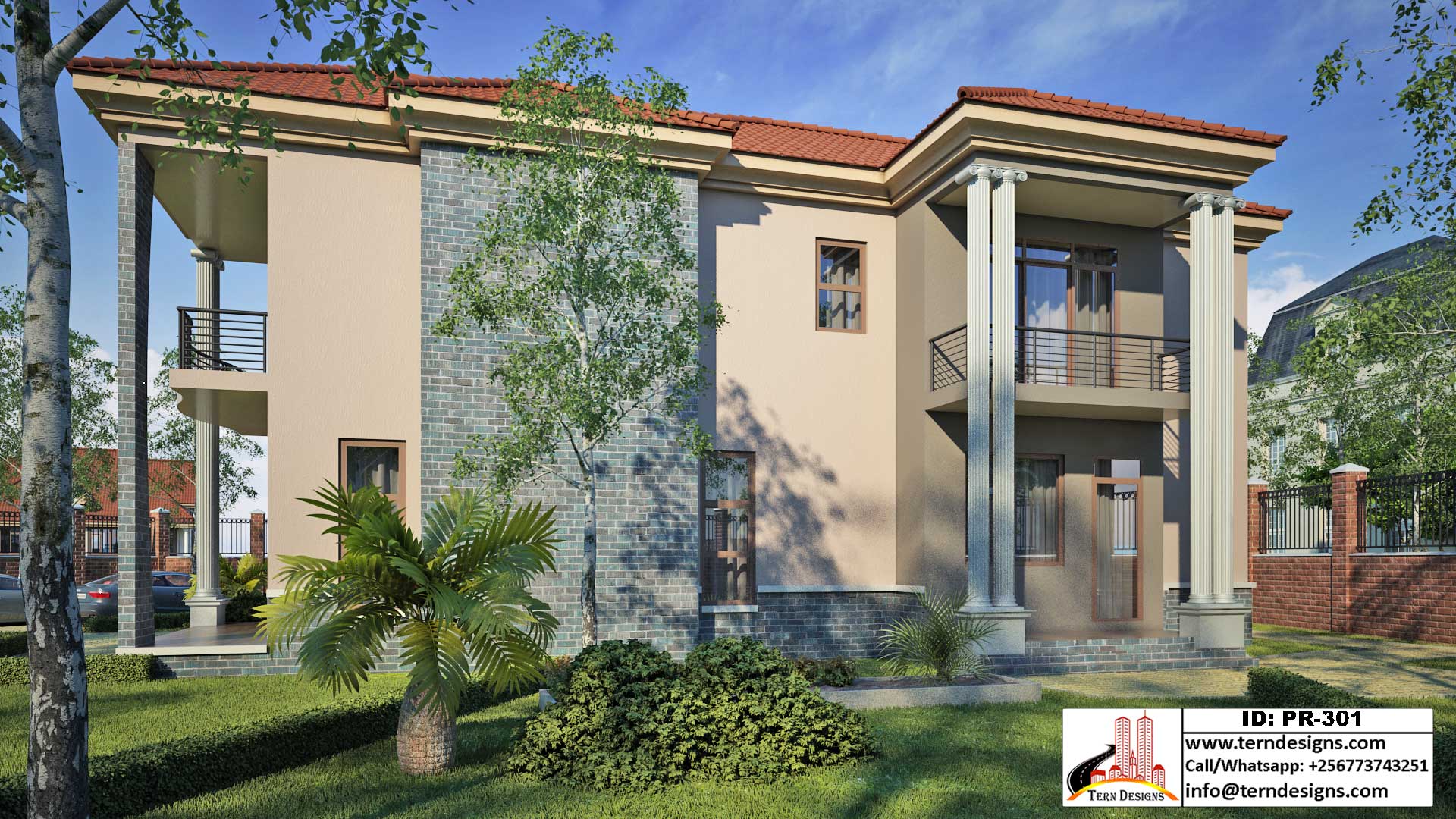

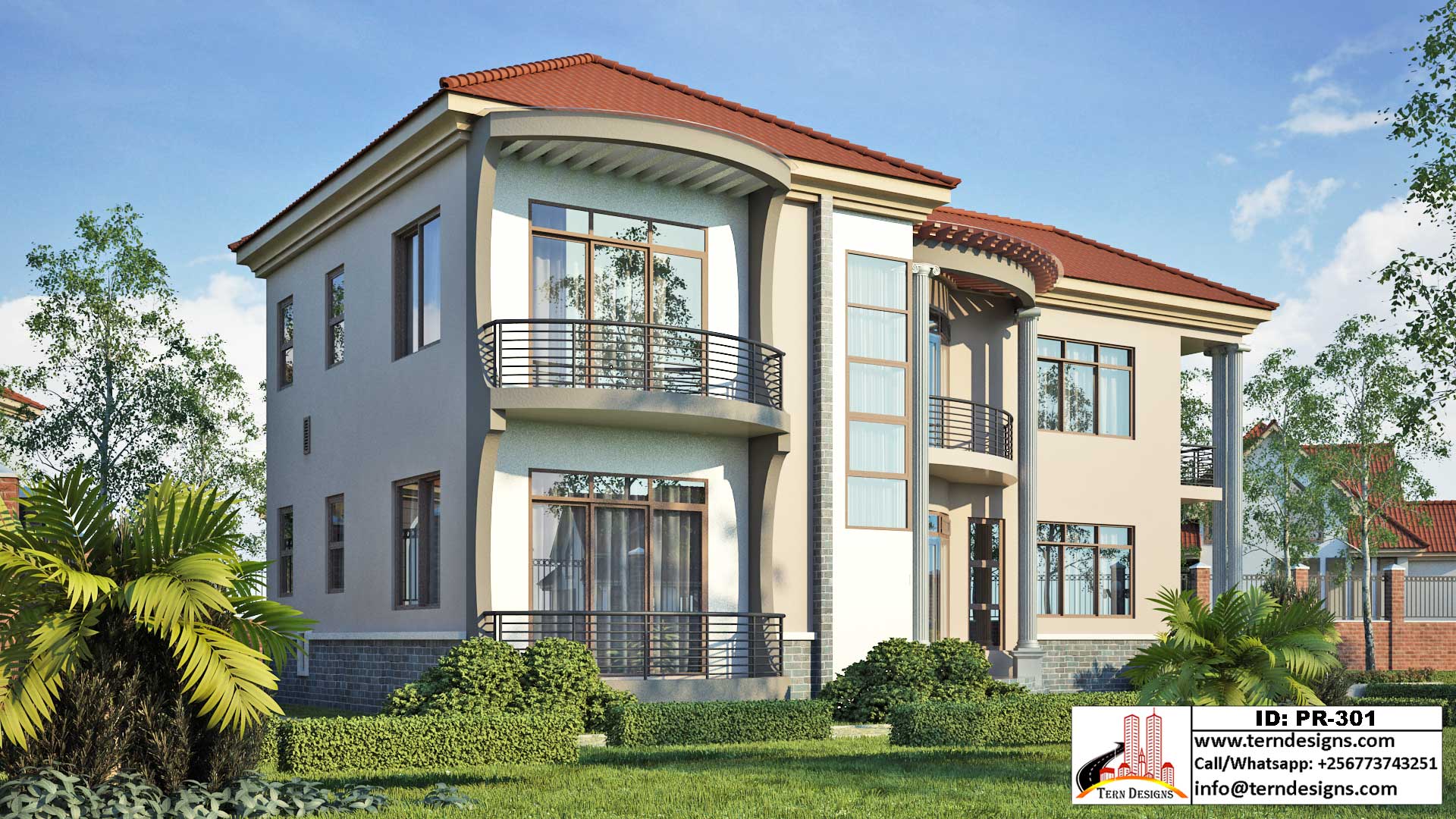

PR-301-View04PR-301-View03PR-301-View02

PR-301

A 4-bedroom house design done with 3 bedrooms ensuite and occupying the upper floor to give you 360-degree captivating views around you home. It’s a spacious design with a balcony for each bedroom

$450 – $900

Clear
Want create site? Find Free WordPress Themes and plugins.

PLAN DETAILS

  • 2 Storeys
  • 4 Bedrooms (3 Ensuite)
  • Width: 18.3m
  • Depth: 12.84m
  • Building footprint area: 127.3m2
  • 1 Living room
  • 1 Dining room
  • 1 Kitchen
  • 4 Baths/toilets
  • 1 Store
  • 1 Walk in closet
  • 4 Balconies
  • 3 Porches



ARCHITECTURAL DRAWINGS (INCLUDED)

  • Floor plans and details
  • Roof plan and details
  • Elevations
  • Sections
  • Door and window schedules
  • Septic tank and soak pit details
  • 3D Documents



STRUCTURAL DRAWINGS (INCLUDED)

  • Foundation layout and details
  • Floor layout plans
  • Floor slab reinforcement plans
  • Roof layout and details
  • Beam and Column details
  • Slab details
  • Staircase plan, section and details
  • Other relevant structural drawings
