PR-290

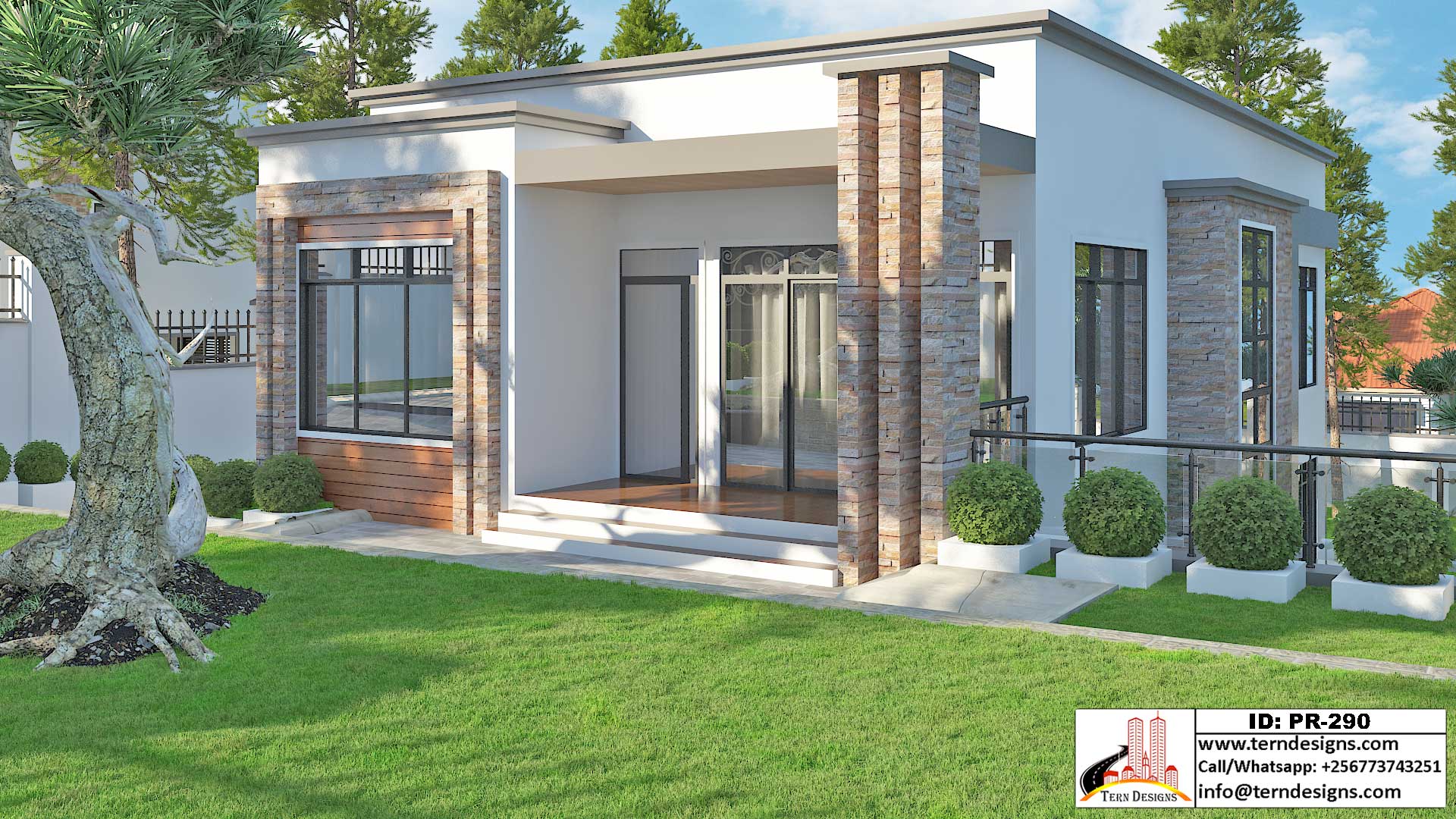

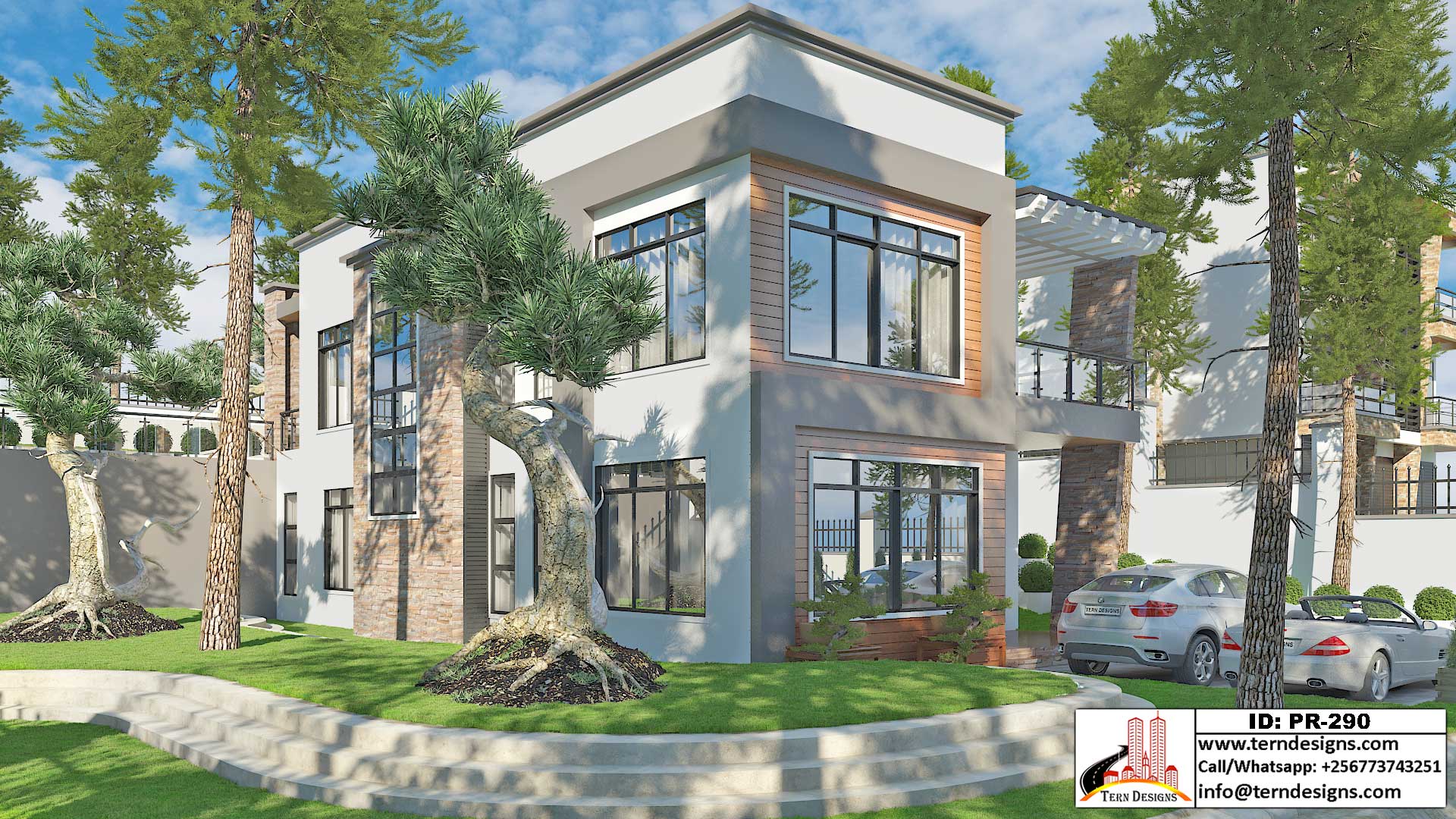

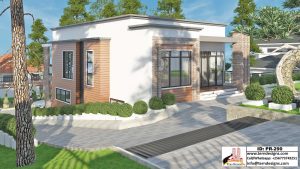

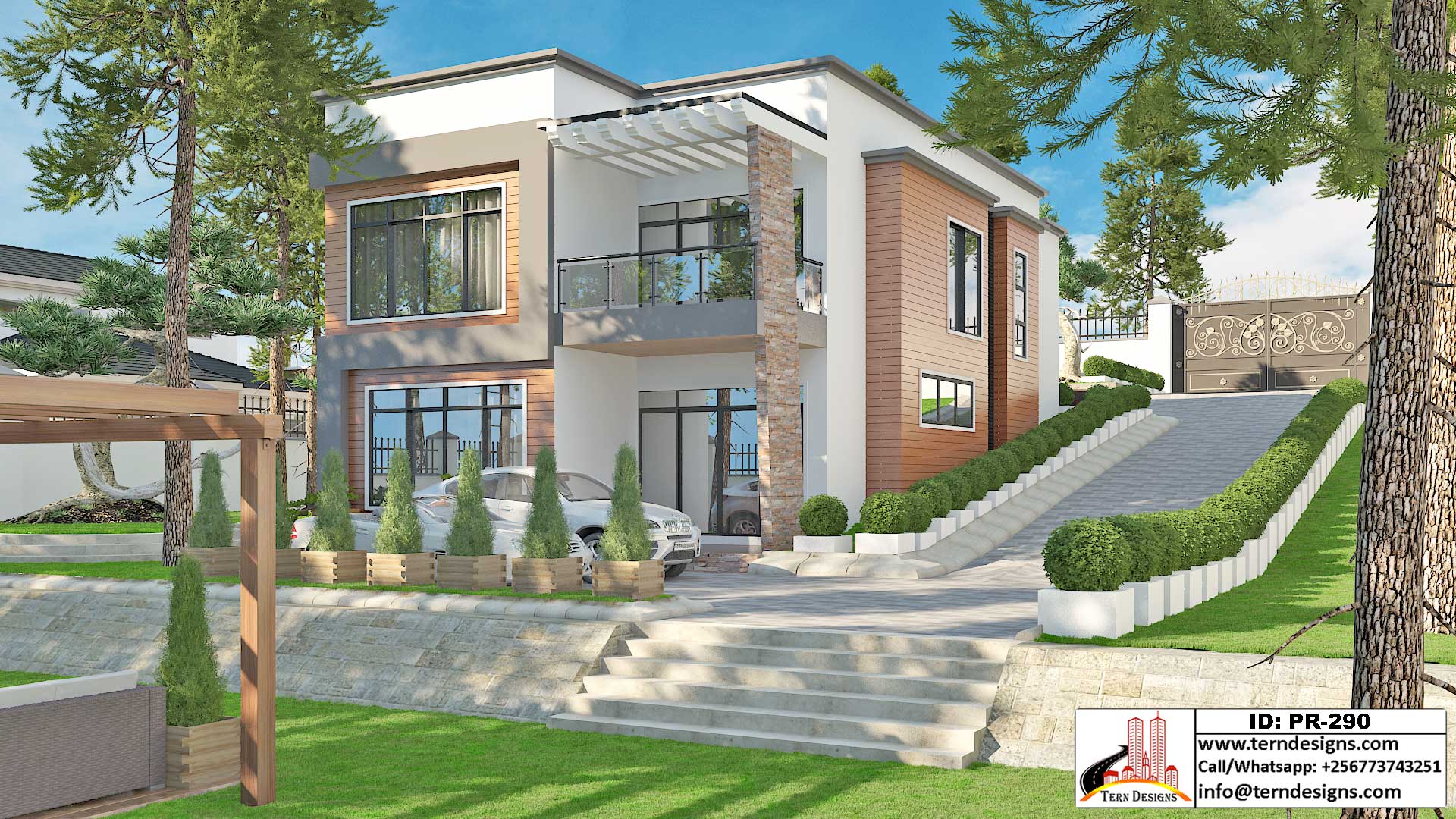

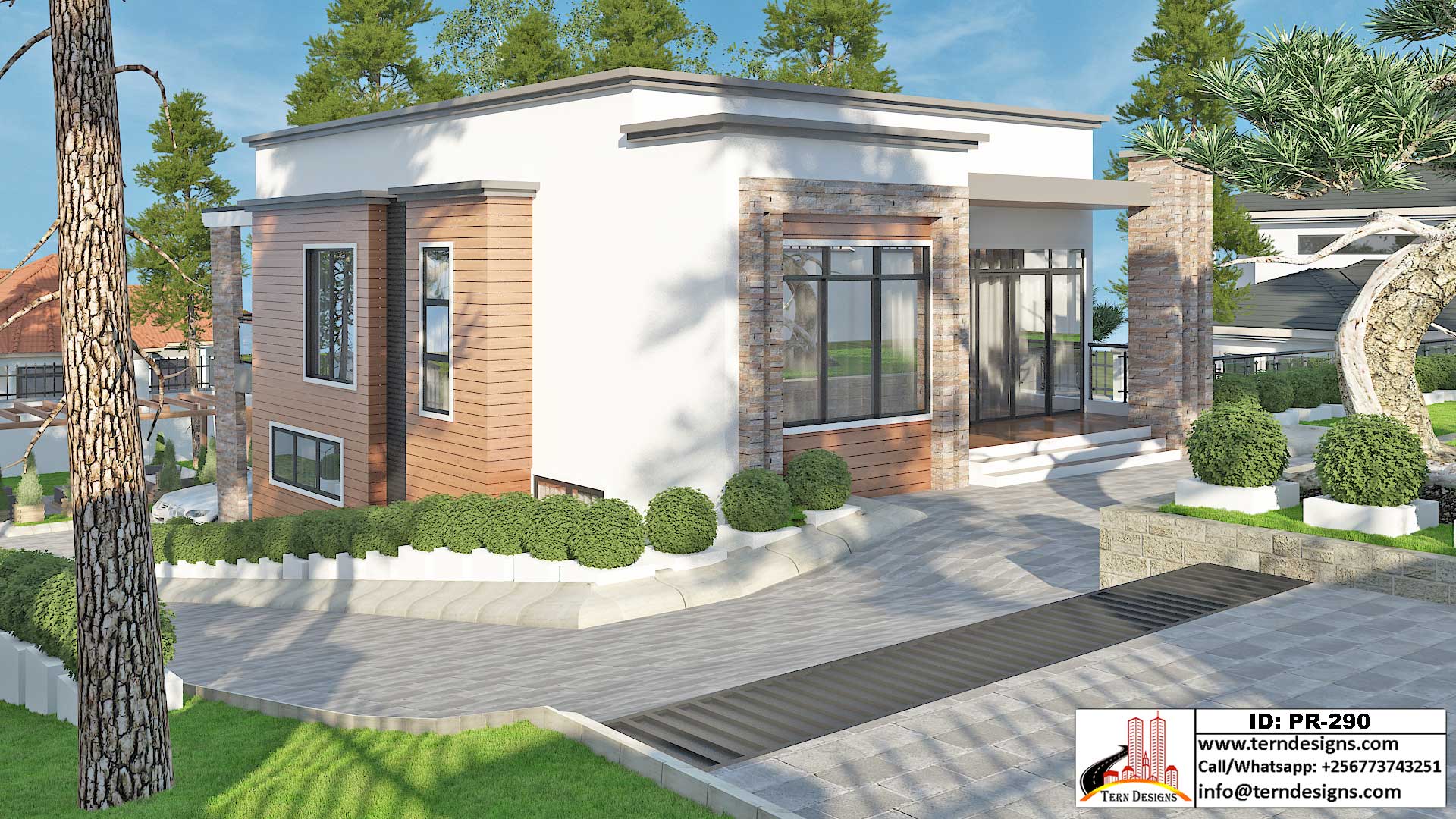

A four-bedroom contemporary house design suitable for slopping plots of land. It’s a spacious well designed house with access on both ground floor and first floor.

$570 – $1,100

Clear
Want create site? Find Free WordPress Themes and plugins.

PLAN DETAILS

  • 2 Storeys
  • 4 Bedrooms (2 ensuite)
  • Width: 17.3m
  • Depth: 10.3m
  • Building footprint area: 167m2
  • 1 Living room
  • 1 Dining room
  • 1 Kitchen
  • 1 Pantry
  • Open floor plan (Living, Dinning, Kitchen)
  • Family room
  • 3 Baths/toilets
  • 1 General toilet
  • 1 Walk in closet
  • 1 Balcony
  • Front porch
  • Back Porch



ARCHITECTURAL DRAWINGS (INCLUDED)

  • Floor plans and details
  • Roof plan and details
  • Elevations
  • Sections
  • Door and window schedules
  • Septic tank and soak pit details
  • 3D Documents
  • Other relevant details



STRUCTURAL DRAWINGS (INCLUDED)

  • Foundation layout and details
  • Floor slab reinforcement plans
  • Roof layout and details
  • Beam and Column details
  • Slab details
  • Staircase plan, section and details
  • Other relevant structural drawings
