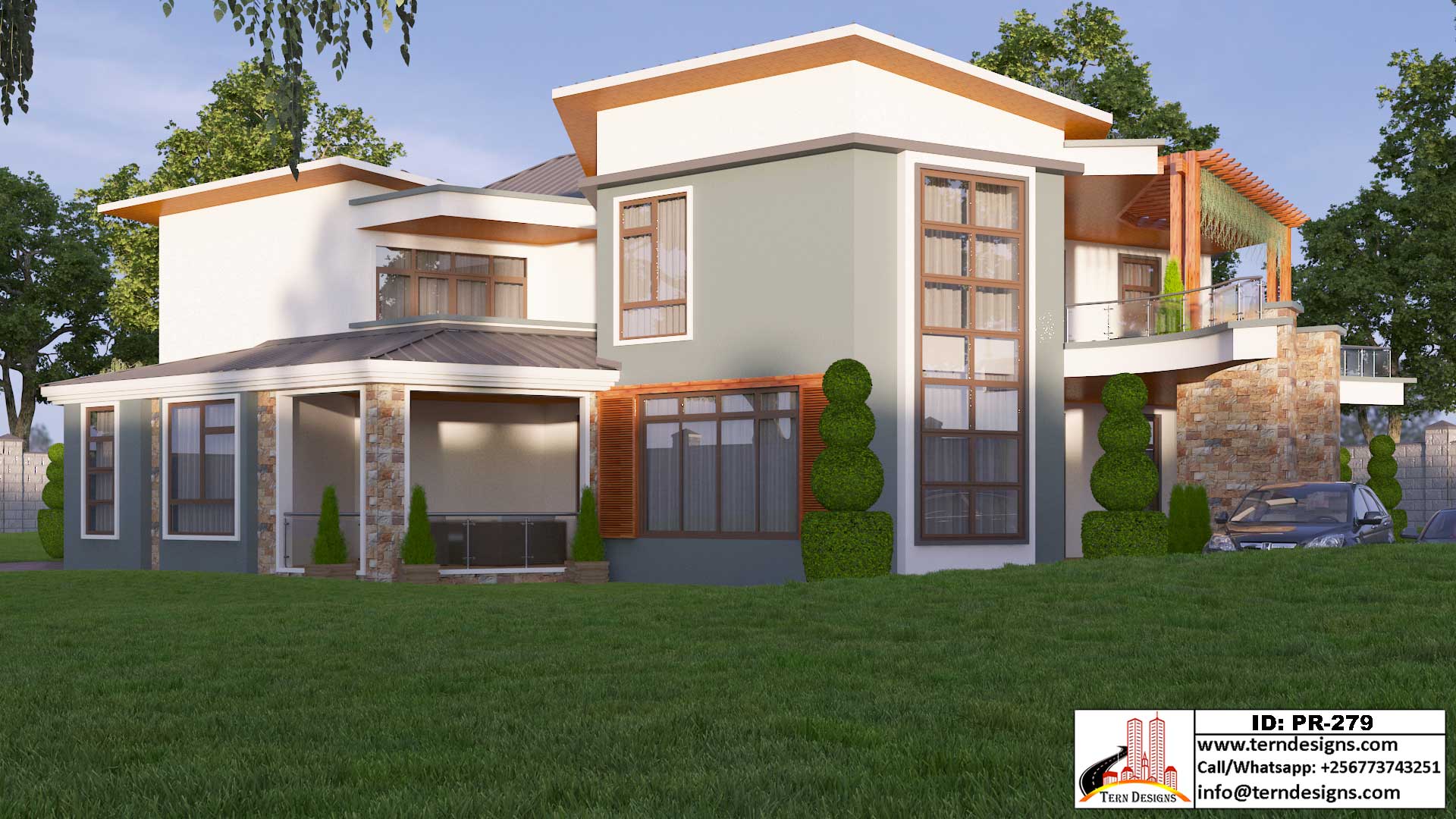

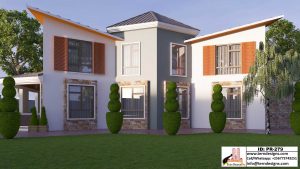

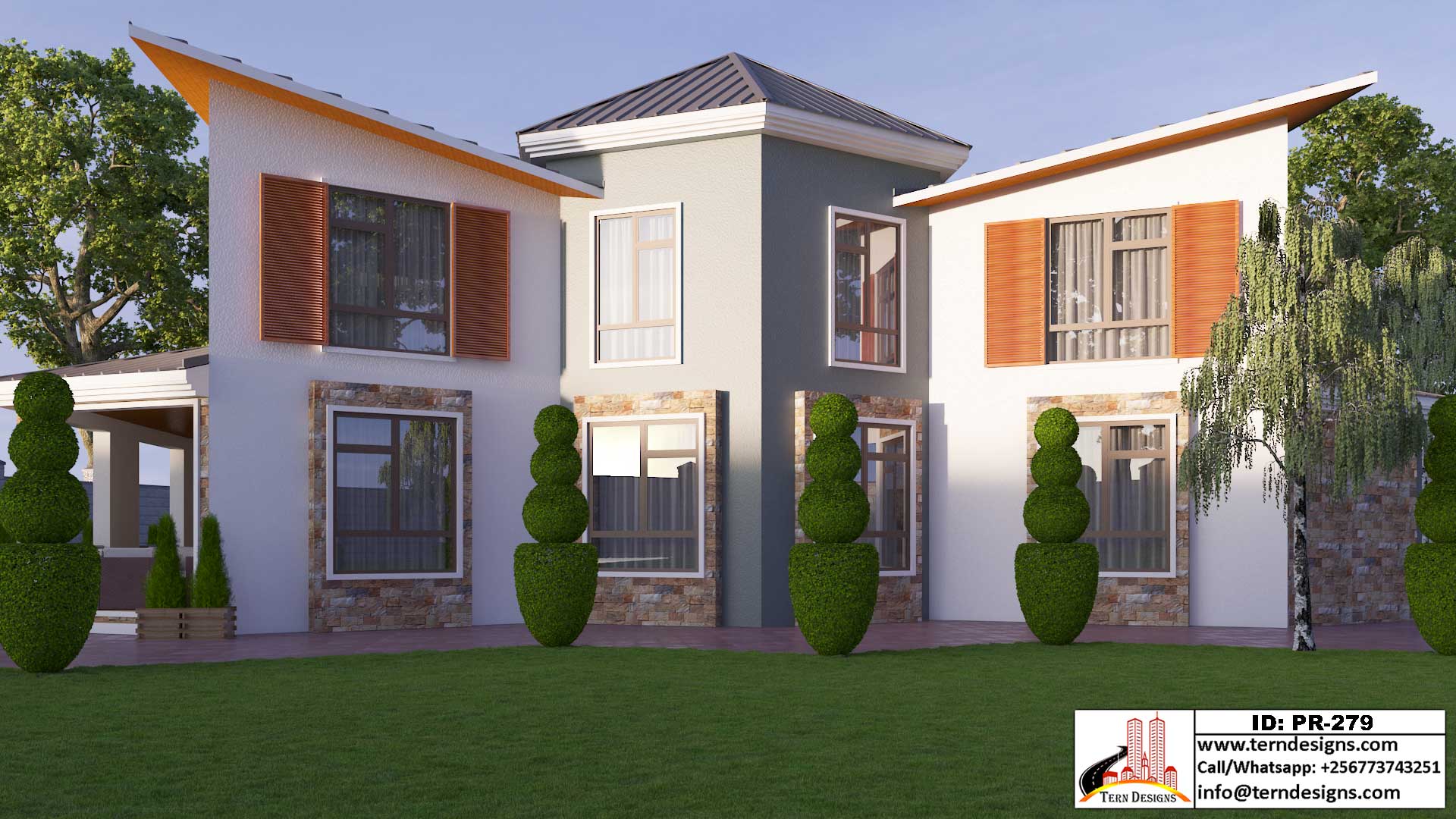

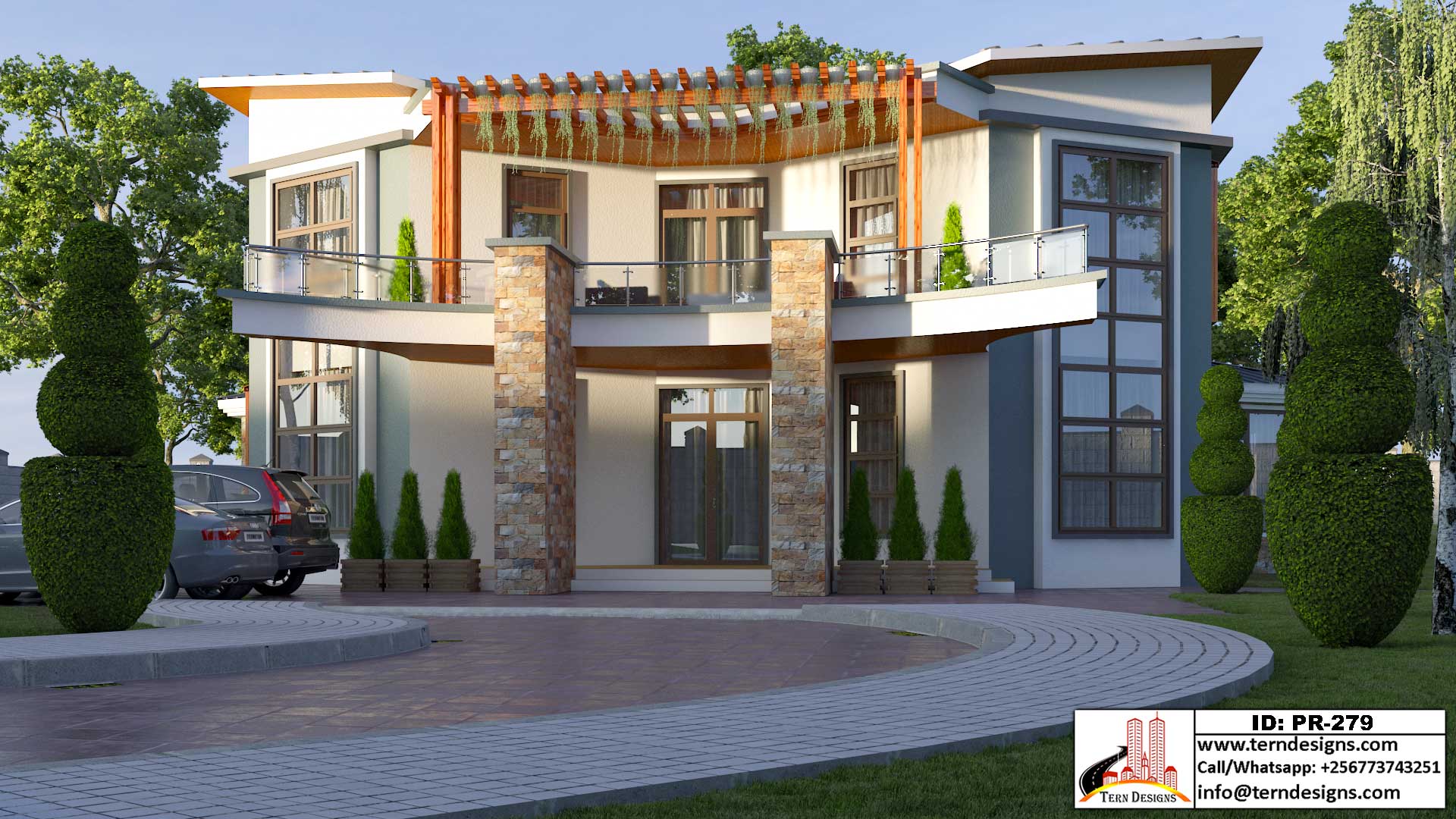

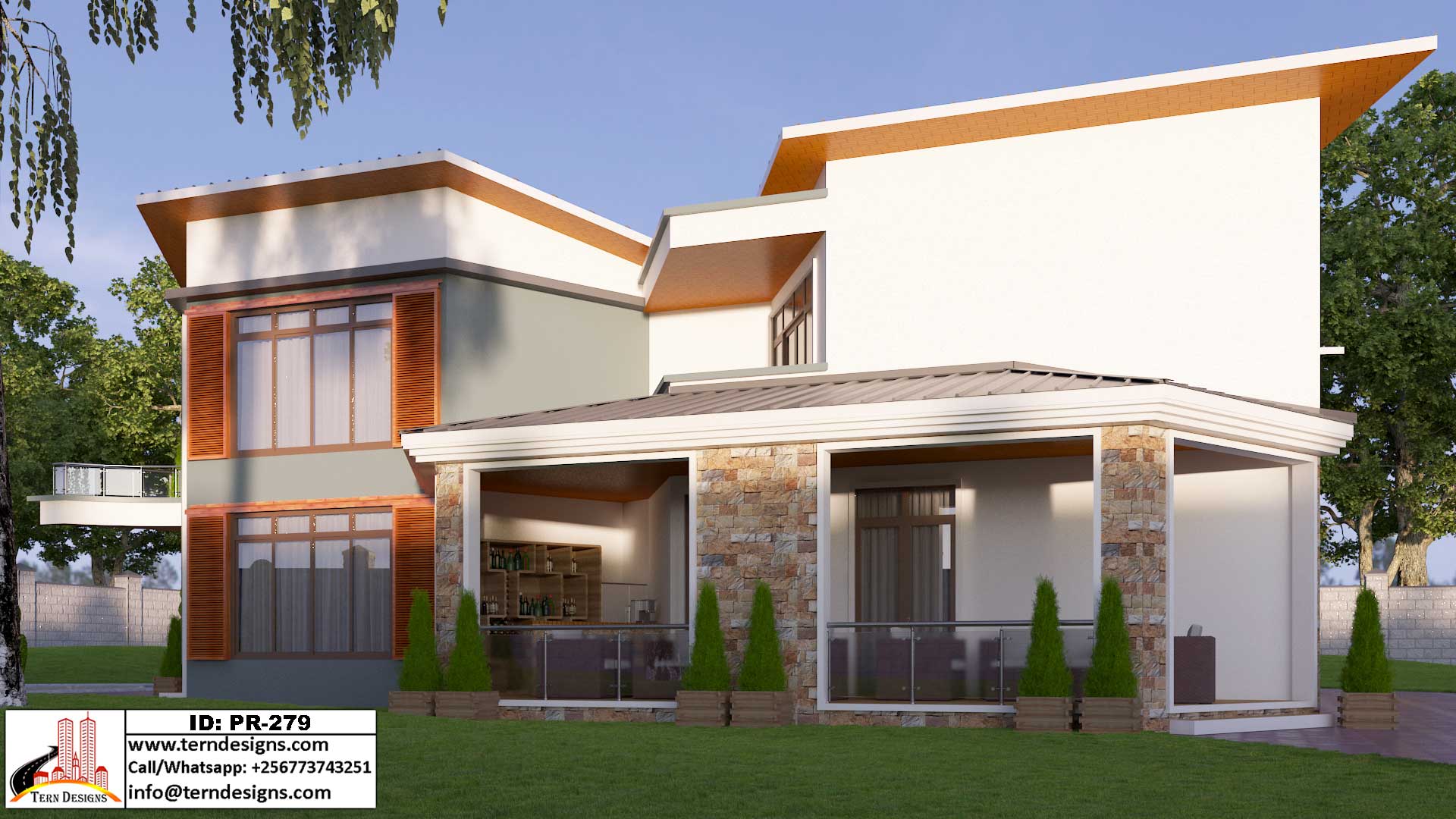

PR-279

PLAN DETAILS

• 2 Storeys
• 4 Bedrooms (all ensuite with Walk in closets)
• Width: 22.5m
• Depth: 22.5m
• Building footprint area: 360m²
• 1 Living room
• 1 Dining room
• 1 Kitchen
• 5 Baths/toilets
• 1 Store
• 3 Balconies
• 1 Outside bar
• 1 Study room
• 2 Alfresco

ARCHITECTURAL DRAWINGS (INCLUDED)

• Floor plans and details
• Roof plan and details
• Elevations
• Sections
• Door and window schedules
• Septic tank and soak pit details
• 3D Documents

STRUCTURAL DRAWINGS (INCLUDED)

• Foundation layout and details
• Floor layout plans
• Floor slab reinforcement plans
• Roof layout and details
• Beam and Column details
• Slab details
• Staircase plan, section and details
• Other relevant structural drawings
