PR-276

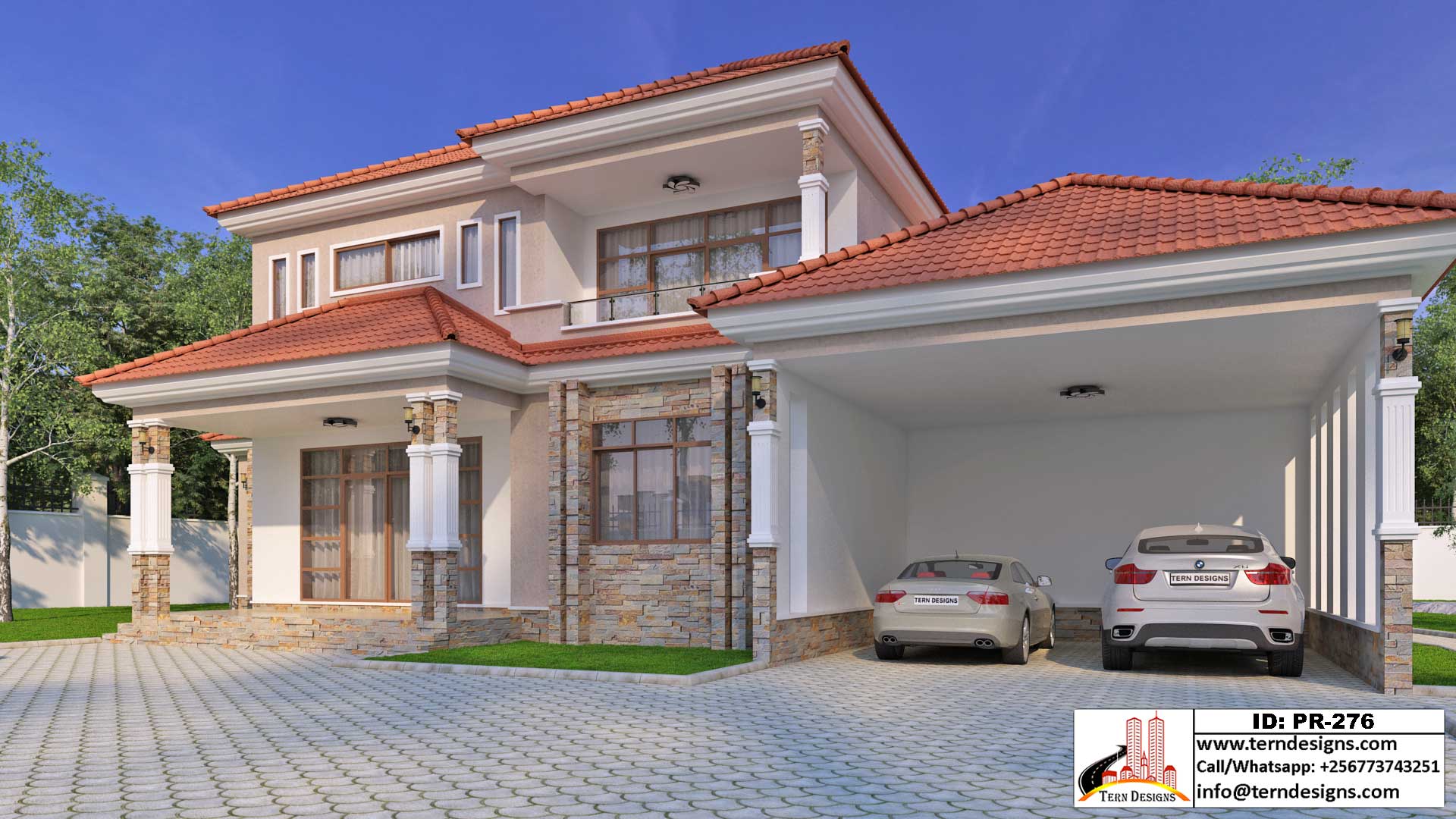

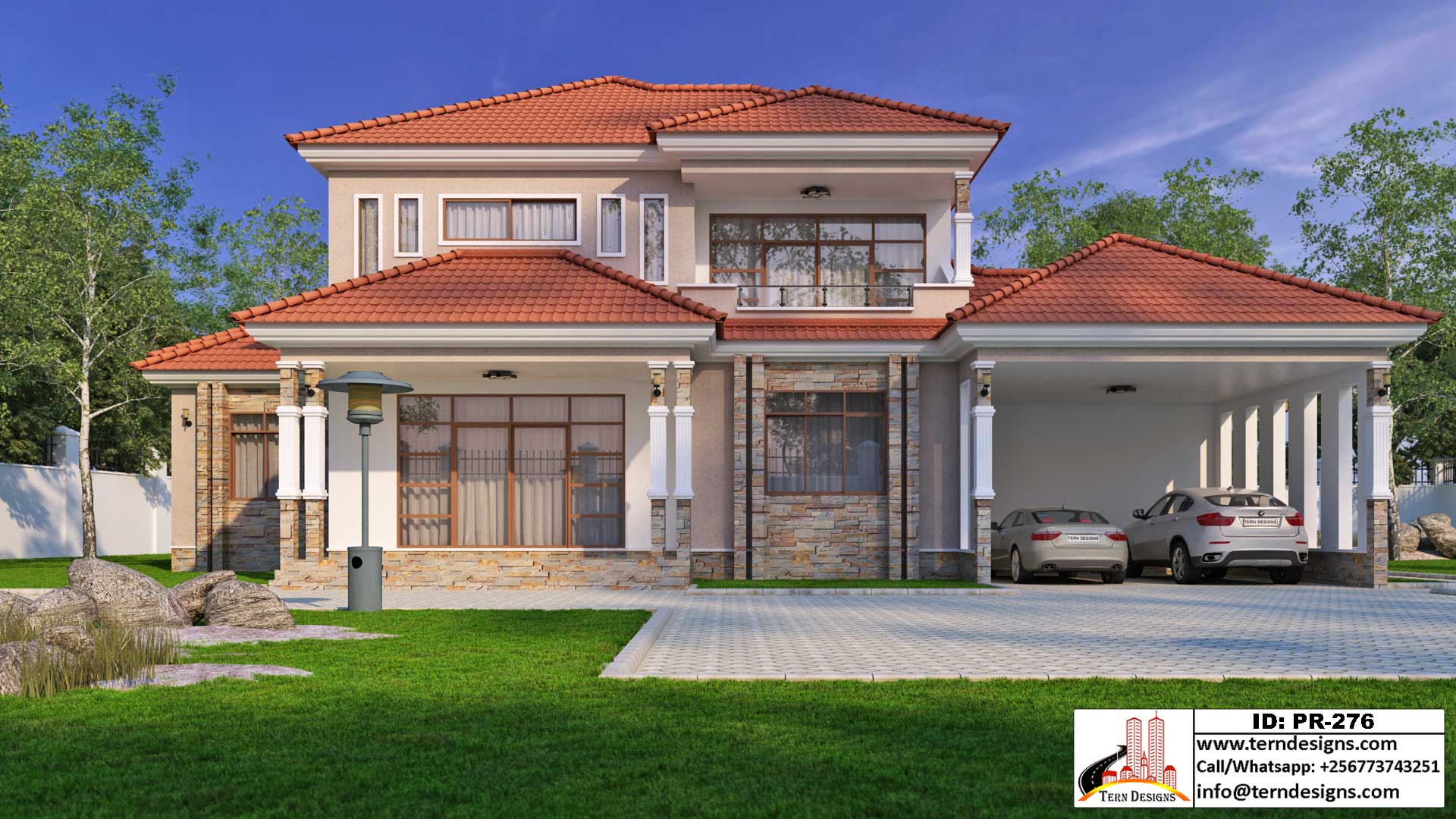

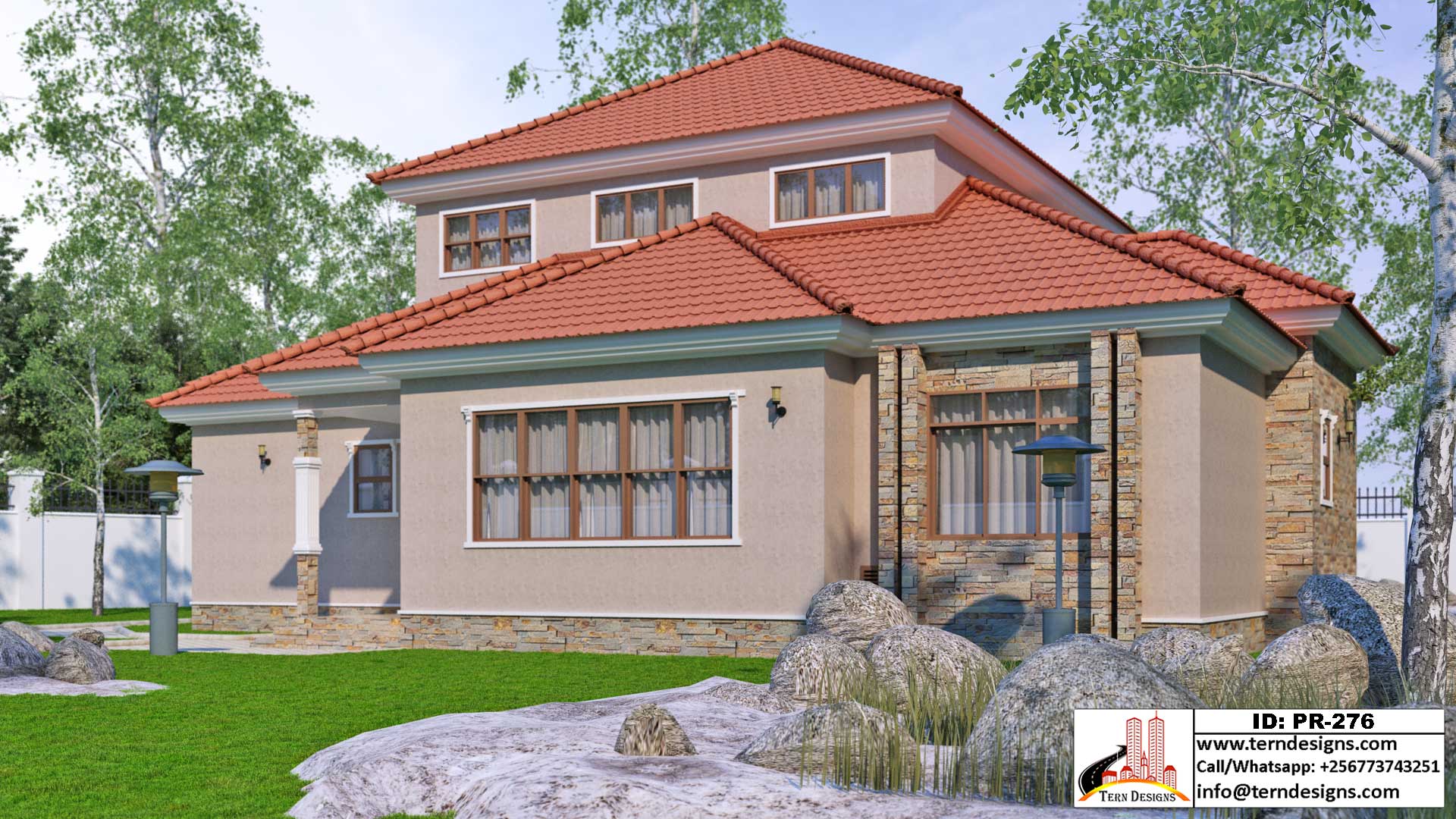

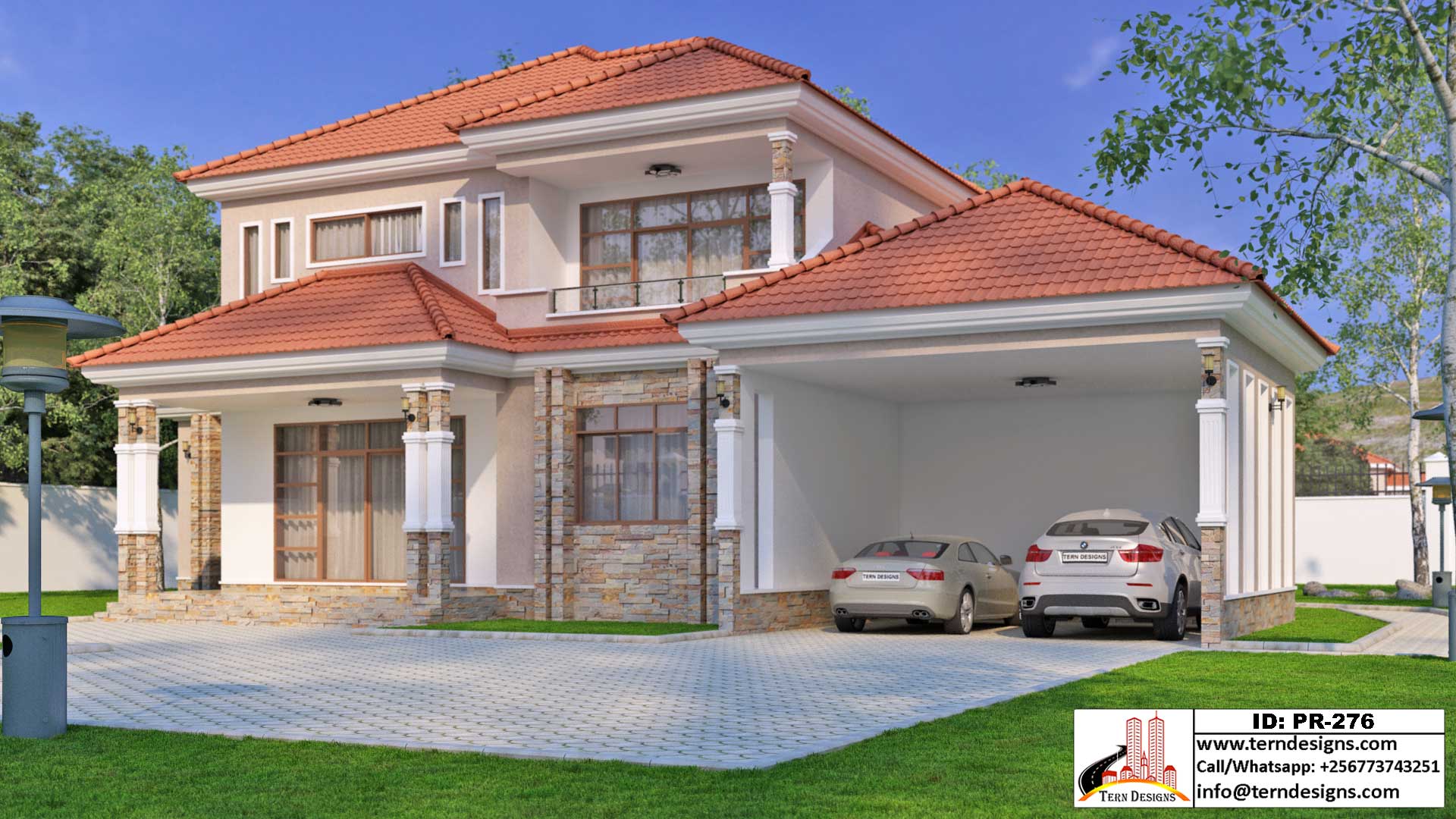

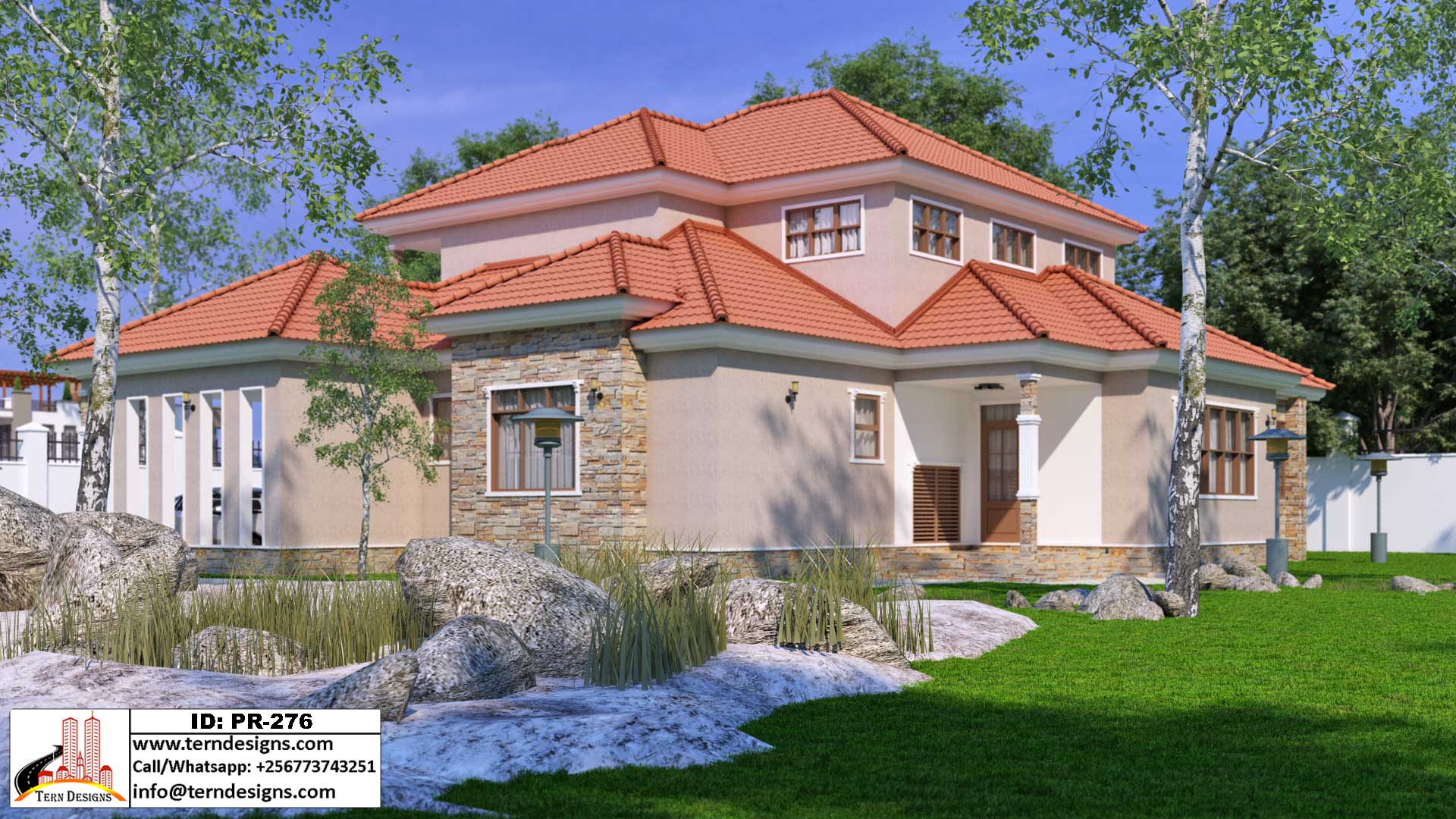

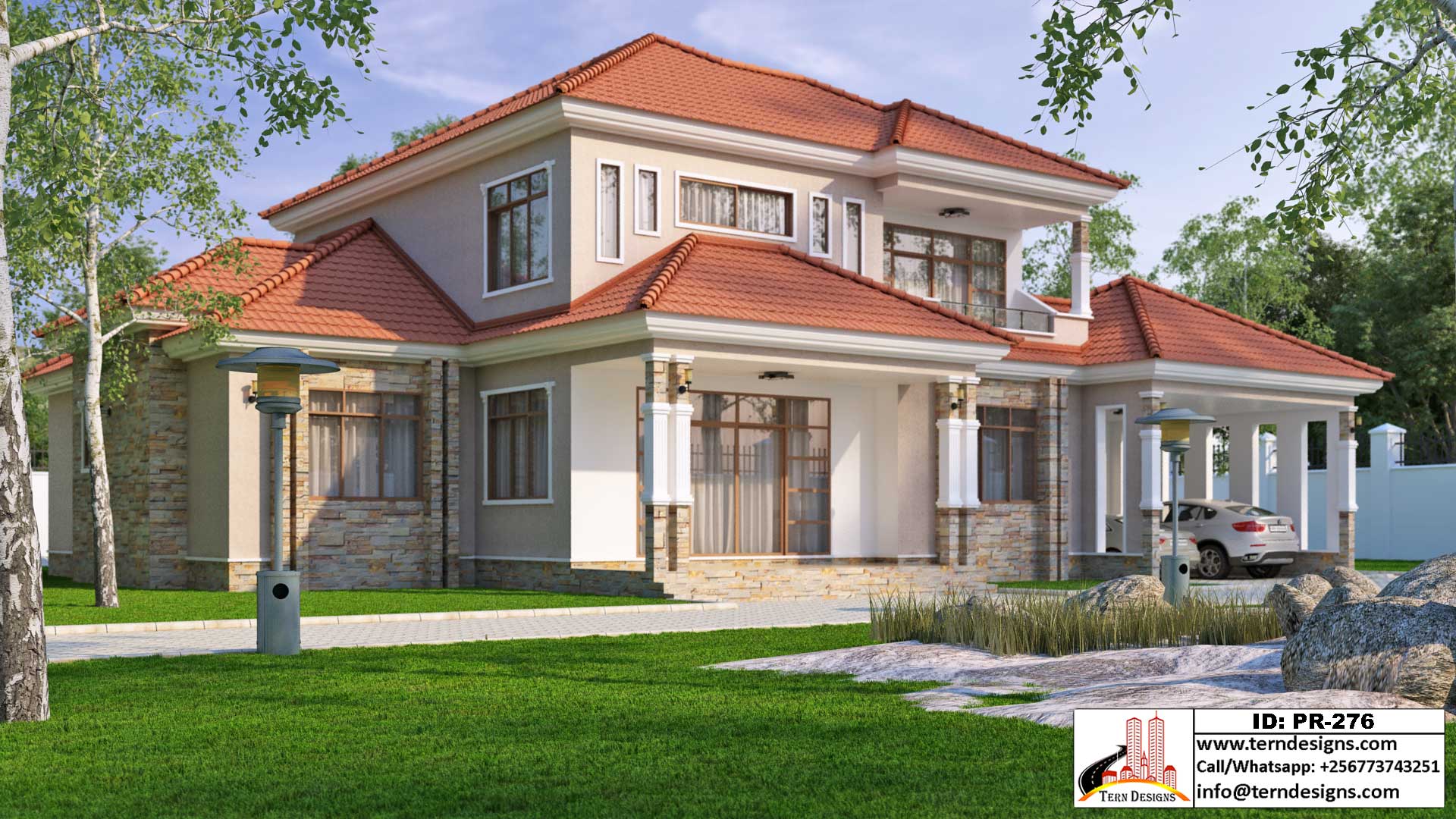

A 5-bedroom house design with just the master suite upstairs done to give you a storeyed house at minimal costs. It is spacious and suitable for all kinds of families

$590 – $999

Clear

PLAN DETAILS

  • 2 Storeys
  • 5 Bedrooms
  • Width: 22.10m
  • Depth: 17.13m
  • Building footprint area: 285 m2
  • 1 Living room
  • 1 Dining room
  • 1 Kitchen
  • Open floor plan (Living, Dinning, Kitchen)
  • 1 Family room
  • 4 Baths/toilets
  • 1 Store
  • 1 Walk in closet
  • 1 Balcony
  • 2 Porches
  • 2-Car port



ARCHITECTURAL DRAWINGS (INCLUDED)

  • Floor plans and details
  • Roof plan and details
  • Elevations
  • Sections
  • Door and window schedules
  • Septic tank and soak pit details
  • 3D Documents



STRUCTURAL DRAWINGS (INCLUDED)

  • Foundation layout and details
  • Floor layout plans
  • Floor slab reinforcement plans
  • Roof layout and details
  • Beam and Column details
  • Slab details
  • Staircase plan, section and details
  • Other relevant structural drawings
