PC-320

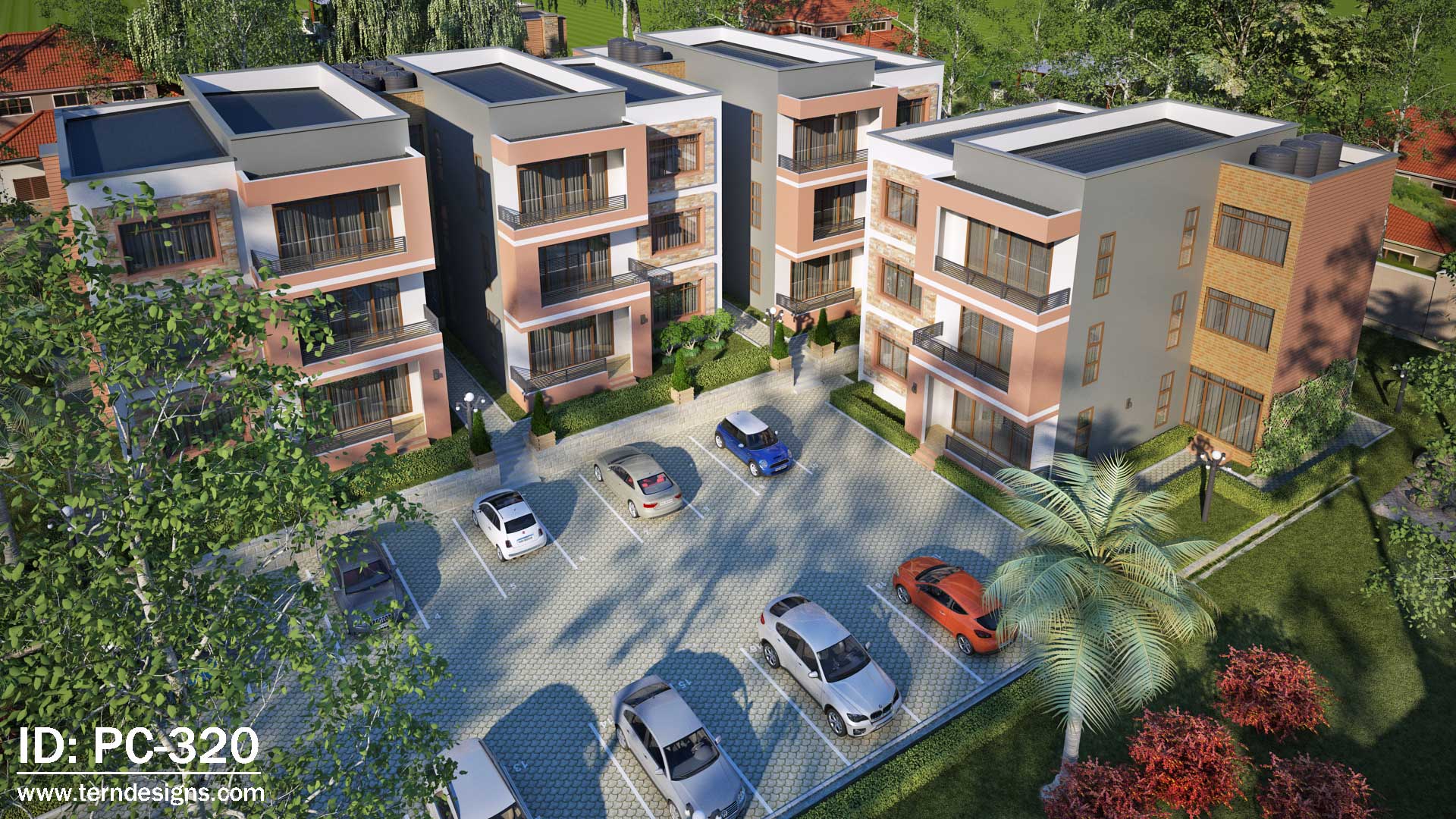

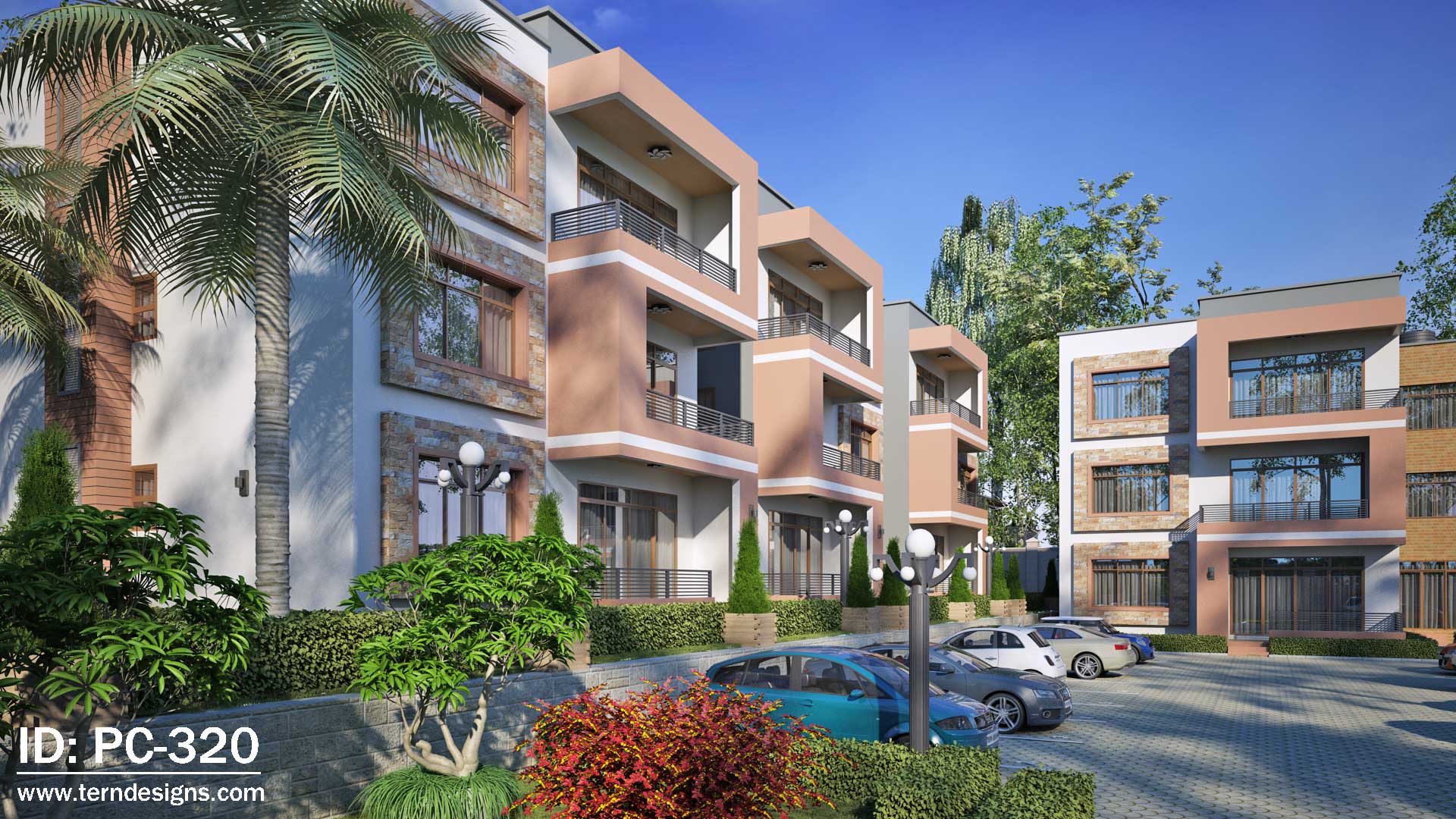

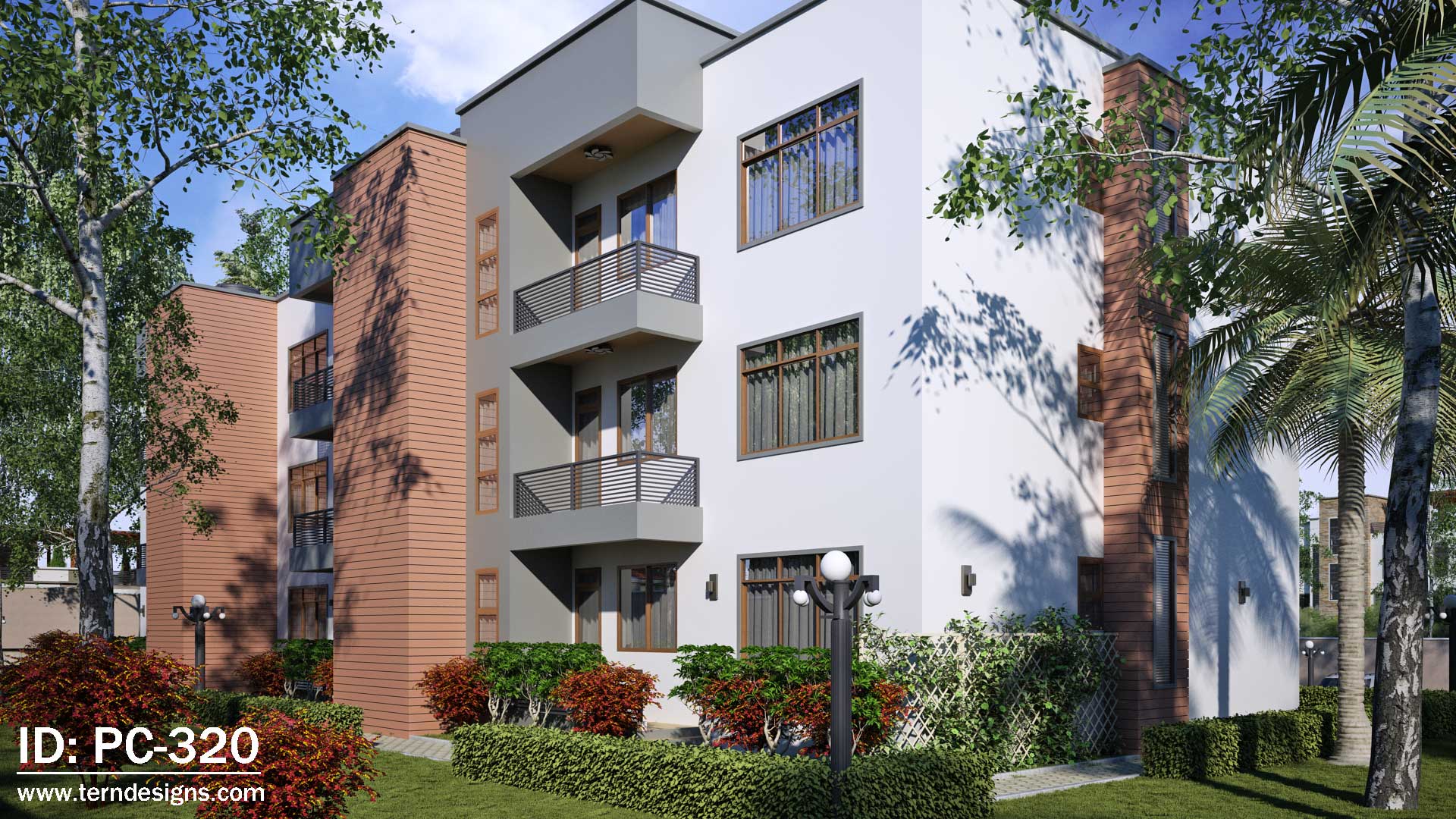

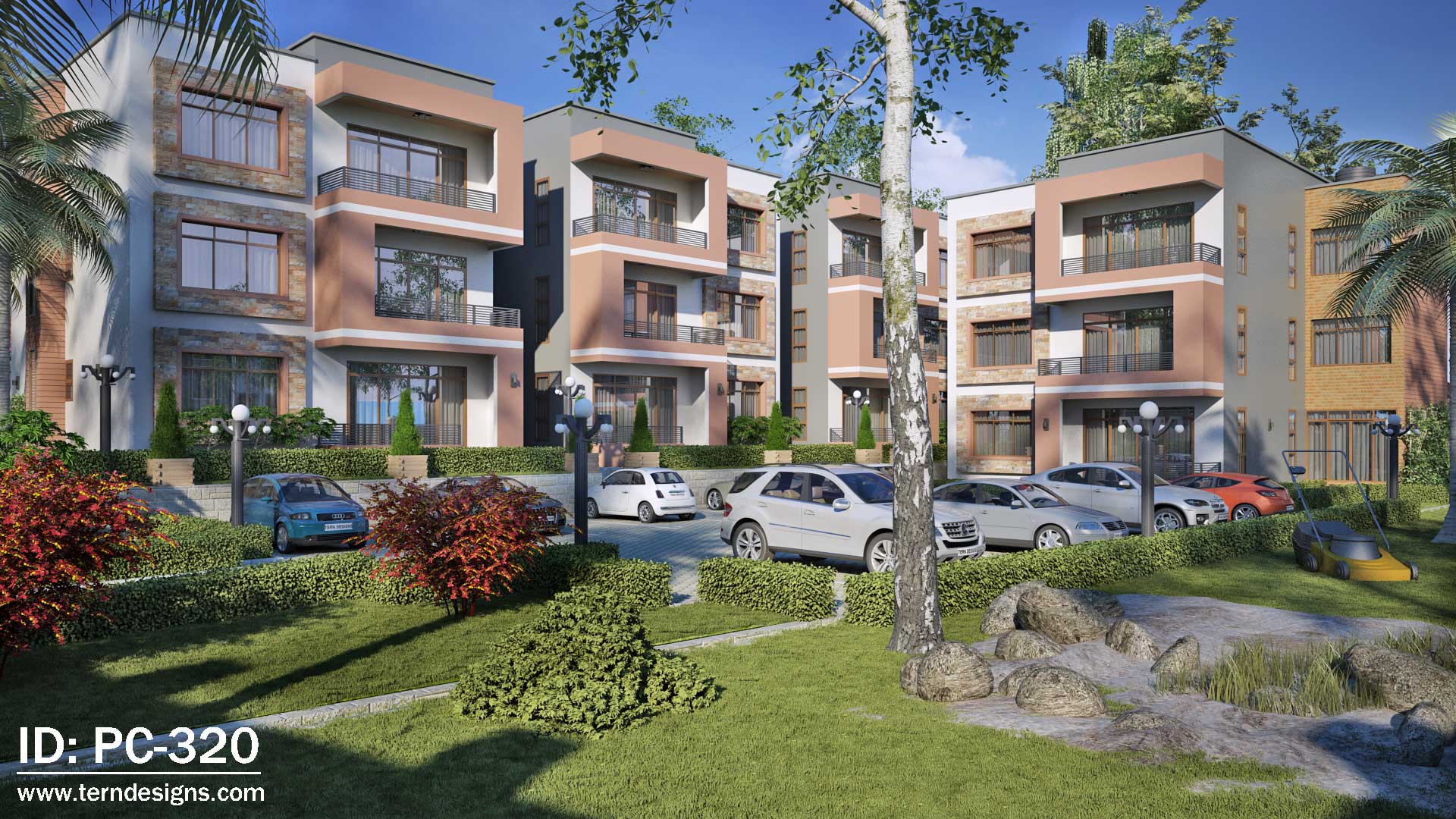

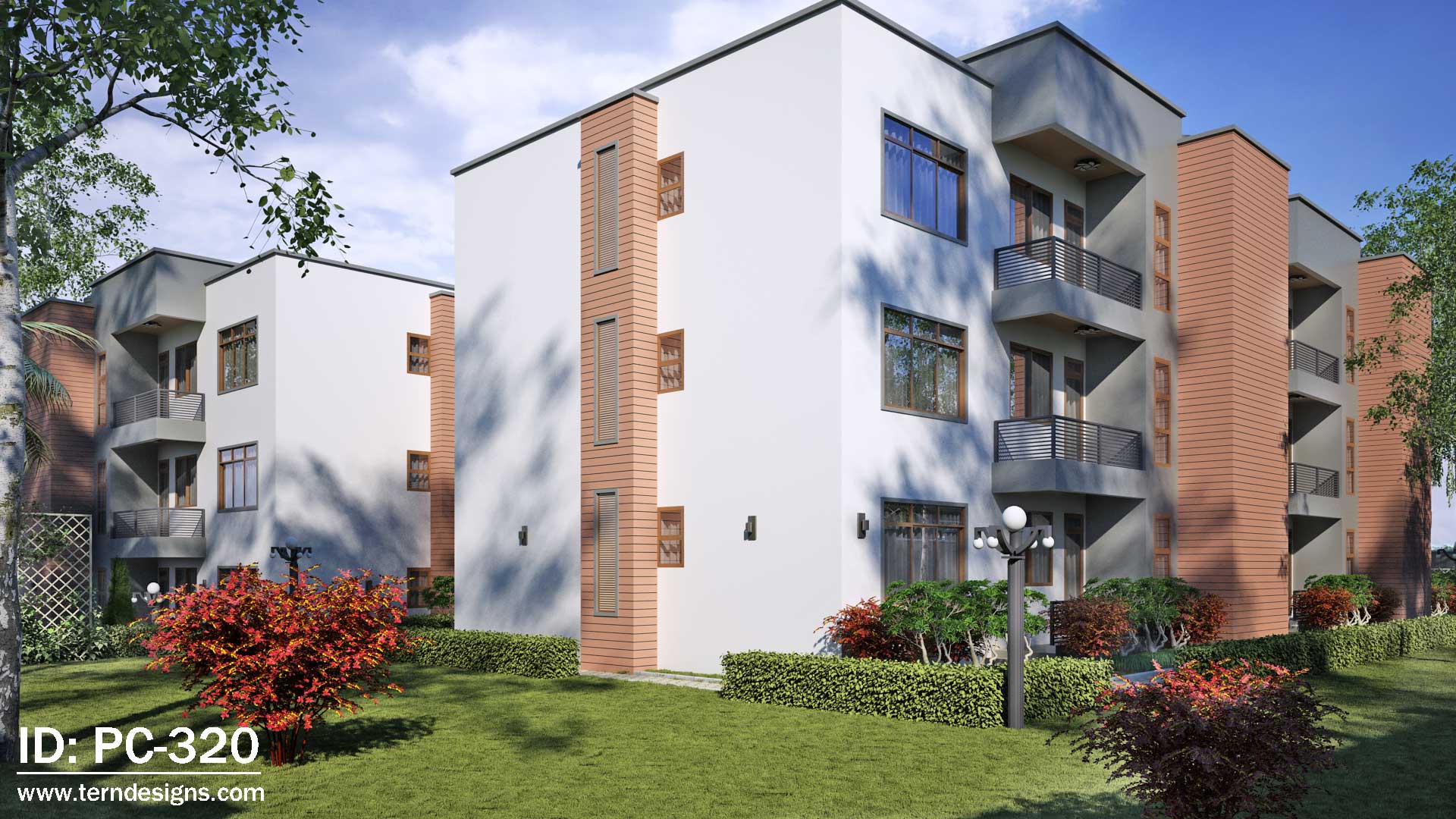

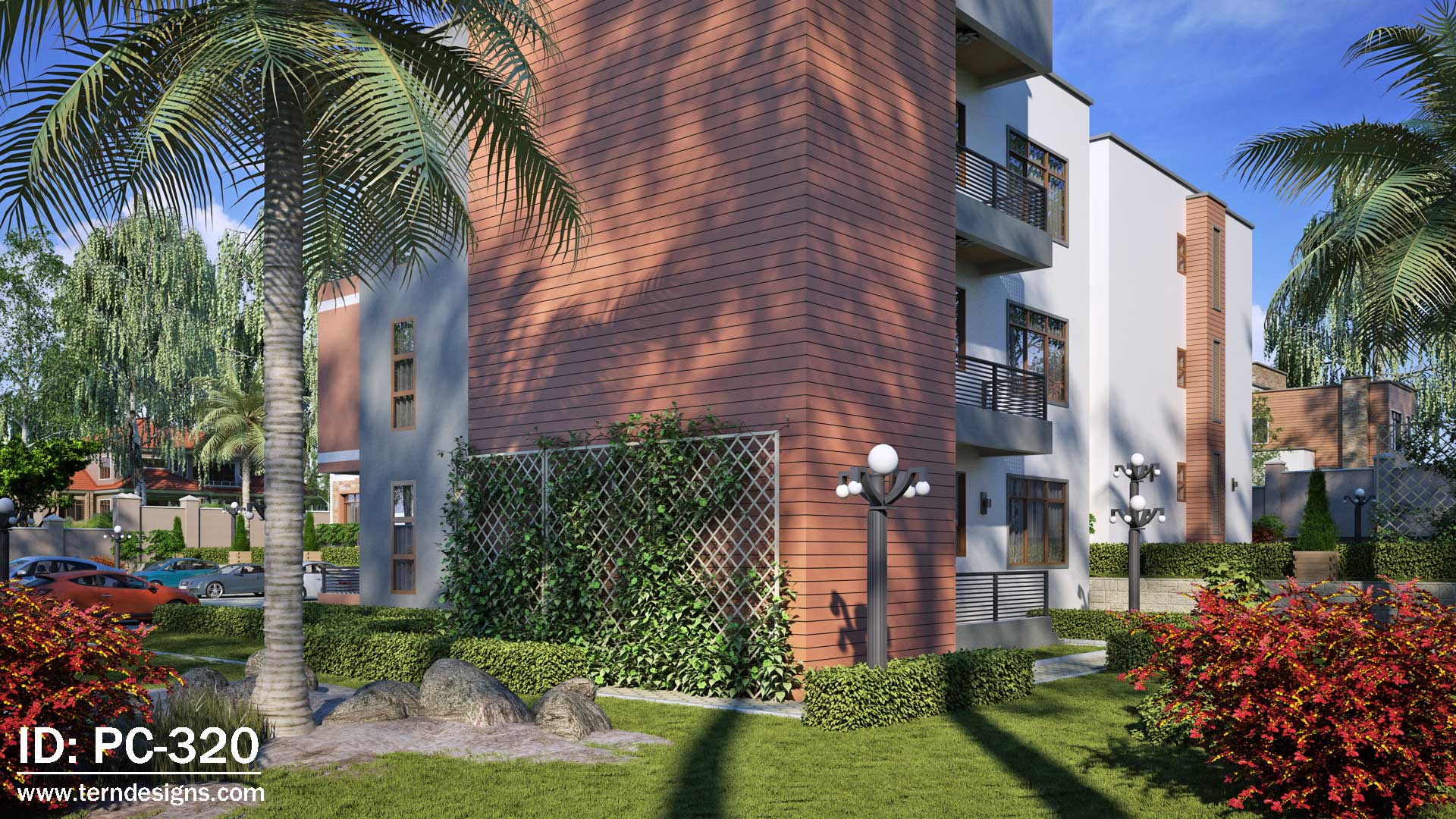

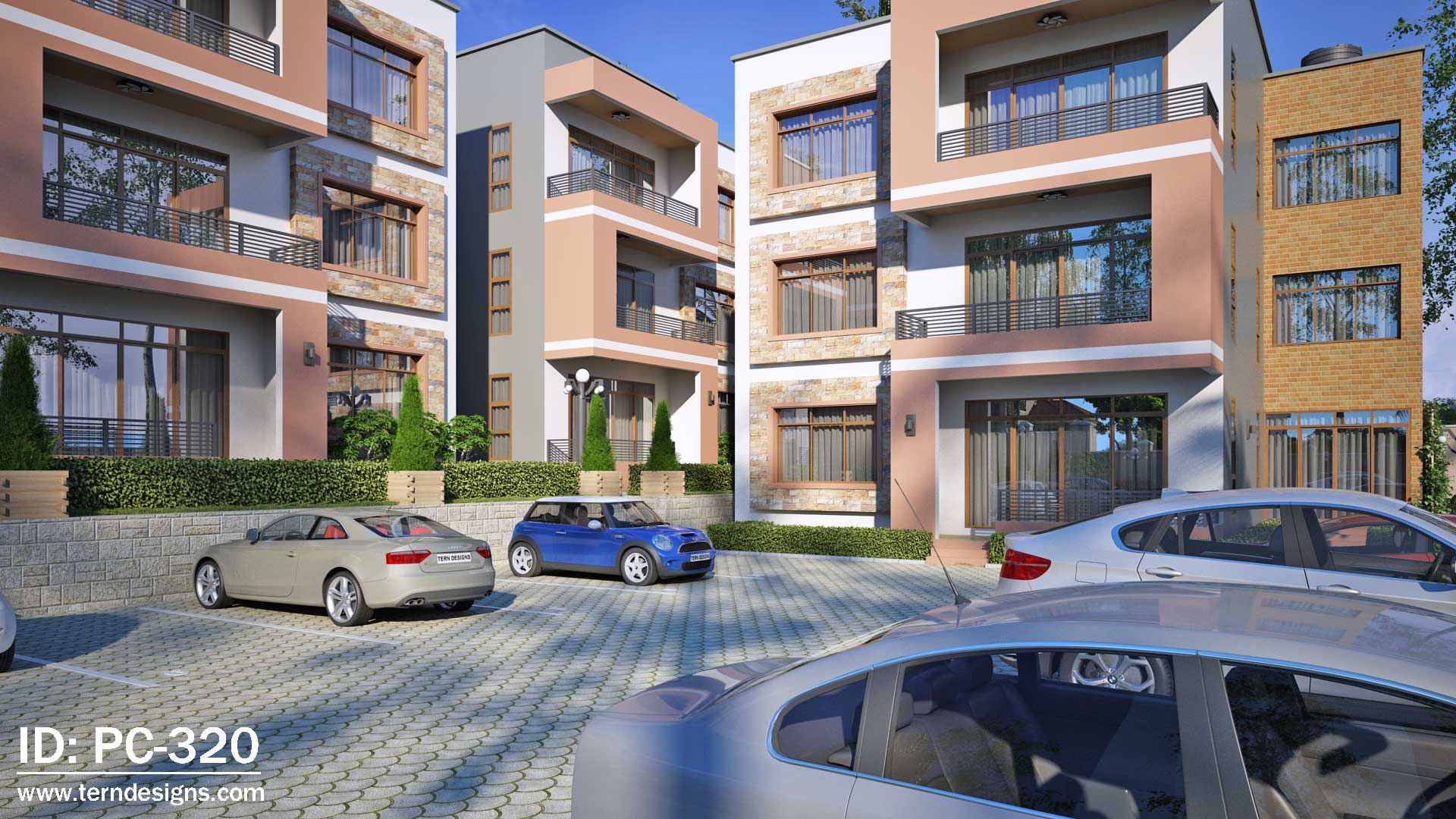

Well planned two-bedroom apartments sitting on 50 decimals. The whole project consists of 2 blocks with a total of 12 units

Want create site? Find Free WordPress Themes and plugins.

PLAN DETAILS

  • 3 Storeys
  • 2 Blocks
  • 12 units
  • 2 Bedroom units
  • Width per unit: 14.6m
  • Depth per unit: 16.4m
  • Footprint area per unit: 171.2m2
  • 1 Living room @ unit
  • 1 Dining room @ unit
  • 1 Kitchen @ unit
  • Open floor plan (Living, Dinning, Kitchen) @ unit
  • 2 Baths/toilets @ unit
  • 1 Store @ unit
  • 2 Balconies @unit



ARCHITECTURAL DRAWINGS (INCLUDED)

  • Floor plans and details
  • Roof plan and details
  • Elevations
  • Sections
  • Door and window schedules
  • Septic tank and soak pit details
  • 3D Documents



STRUCTURAL DRAWINGS (INCLUDED)

  • Foundation layout and details
  • Floor layout plans
  • Floor slab reinforcement plans
  • Roof layout and details
  • Beam and Column details
  • Slab details
  • Staircase plan, section and details
  • Other relevant structural drawings
